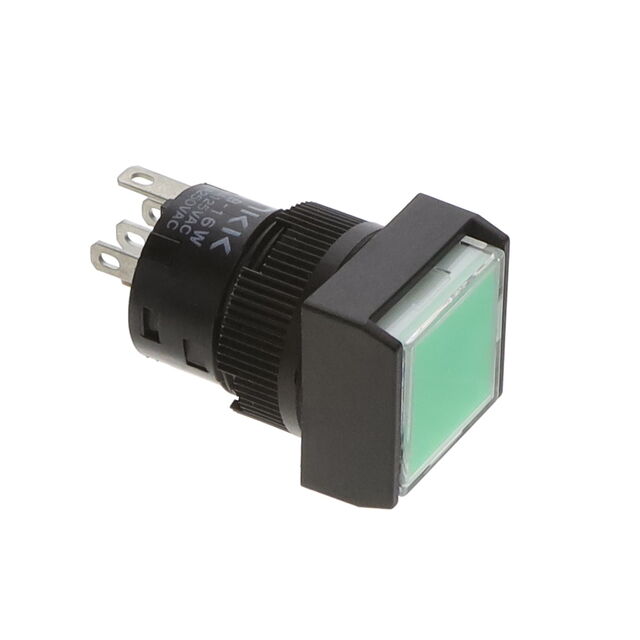

YB16WSKW01-5F-JF

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16WSKW01-5F-JF

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16WS Series

Part	Termination Style	Termination Style	Termination Style	Type	Illumination Voltage (Nominal)	Features	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Electrical Life	Illumination Type, Color	Mechanical Life	Actuator Marking	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Ingress Protection
NKK Switches YB16WSKW01-5C-JB	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	1.9 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	LED Red	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-6F-JB	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	3.3 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	Green LED	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKG01-6B-JB	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	3.3 VDC	Tactile Feedback	28 V	28 V	On-On	0.4 VA	Clear	Panel Mount Front	100000 Cycles	LED White	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-EB	0.11 in	Quick Connect Solder	2.8 mm	Standard		Tactile Feedback	125 V	30 V	On-On	3 A	Yellow (White Filter/Diffuser)	Panel Mount Front	100000 Cycles		200000 Cycles	No Marking	SPDT	Button Square	70 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-5F-JF	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	2.2 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	Green LED	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW03-2CF02-JB		PC Pin		Illuminated Standard	2.1 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	Green/Red LED	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-GB	0.11 in	Quick Connect Solder	2.8 mm	Standard		Tactile Feedback	125 V	30 V	On-On	3 A	Blue	Panel Mount Front	100000 Cycles		200000 Cycles	No Marking	SPDT	Button Square	70 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-6B-JB	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	3.3 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	LED White	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-5C-JC	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	1.9 VDC	Tactile Feedback	125 V	30 V	On-On	3 A	Clear (Red Filter/Diffuser)	Panel Mount Front	100000 Cycles	LED Red	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
NKK Switches YB16WSKW01-5D24-JB	0.11 in	Quick Connect Solder	2.8 mm	Illuminated Standard	24 V	Tactile Feedback	125 V	30 V	On-On	3 A	Clear	Panel Mount Front	100000 Cycles	Amber LED	200000 Cycles	No Marking	SPDT	Button Square	50 °C	-25 °C	16 mm	IP65 - Dust Tight Water Resistant
