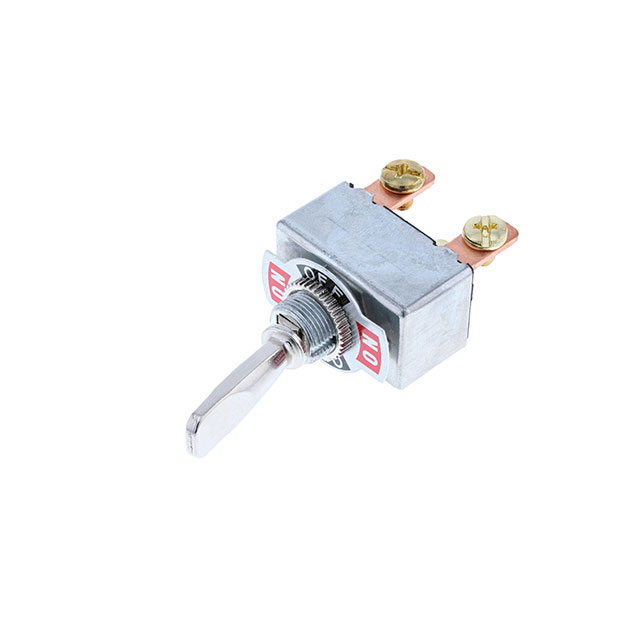

TD2-1F-DC-3-H
ActiveSwitch Components
SWITCH TOGGLE SPDT 50A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TD2-1F-DC-3-H
ActiveSwitch Components
SWITCH TOGGLE SPDT 50A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TD2-1F-DC-3-H |
|---|---|
| Actuator Length [x] | 28.4 mm |
| Actuator Material | Zinc Alloy, Nickel Plated |
| Actuator Type | Flatted |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 50 A |
| Electrical Life | 6000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.49 | |
| 10 | $ 8.13 | |||
| 25 | $ 7.64 | |||
| 50 | $ 7.35 | |||
| 100 | $ 6.85 | |||
| 250 | $ 6.28 | |||
| 500 | $ 5.71 | |||
| 1000 | $ 5.23 | |||
Description
General part information
TD2-1F Series
Toggle Switch SPDT Panel Mount
