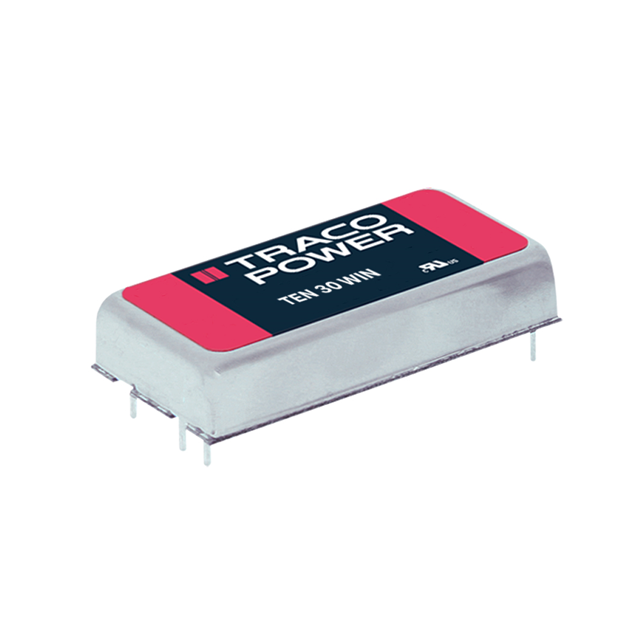

TEN 30-2431WIN

Active

Traco Power

DC DC CONVERTER 5V +/-12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEN 30-2431WIN

Active

Traco Power

DC DC CONVERTER 5V +/-12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 30-2431WIN

Applications	ITE (Commercial)
Current - Output (Max)	416 mA
Current - Output (Max)	4 A
Current - Output (Max)	416 mA
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	3
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module, 6 Leads
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

TEN 30 Series

Part	Voltage - Input (Min) [Min]	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Features	Voltage - Isolation	Voltage - Output 2	Voltage - Output 1	Mounting Type	Number of Outputs	Current - Output (Max)	Supplier Device Package	Voltage - Output 3	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TEN 30-2422	18 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	ITE (Commercial)	6-DIP Module	30 W	36 V	89 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	-12 V	12 V	Through Hole	2	1.25 A	Module
Traco Power TEN 30-2431WIN	9 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 ¯C	-40 °C	ITE (Commercial)	7-DIP Module 6 Leads	30 W	36 V	88 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	12 V	5 V	Through Hole	3	4 A	Module	-12 V	416 mA	416 mA
Traco Power TEN 30-1211	9 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	ITE (Commercial)	6-DIP Module	31 W	18 V	87 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV		5.1 V	Through Hole	1		Module				6 A
Traco Power TEN 30-1223	9 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	ITE (Commercial)	6-DIP Module	30 W	18 V	87 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	-15 V	15 V	Through Hole	2	1 A	Module			1 A
Traco Power TEN 30-4811WIN	18 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 ¯C	-40 °C	ITE (Commercial)	7-DIP Module 6 Leads	31 W	75 V	88 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV		5.1 V	Through Hole	1		Module				6 A
Traco Power TEN 30-4822WIN	18 V	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 ¯C	-40 °C	ITE (Commercial)	7-DIP Module 6 Leads	30 W	75 V	88 %	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	-12 V	12 V	Through Hole	2	1.25 A	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 88.50
		10	$ 78.97
		25	$ 76.36
		50	$ 74.44
		100	$ 72.58
		250	$ 64.51

Description

General part information

TEN 30 Series

Isolated Module DC DC Converter 3 Output 5V 12V -12V 4A, 416mA, 416mA 9V - 36V Input
