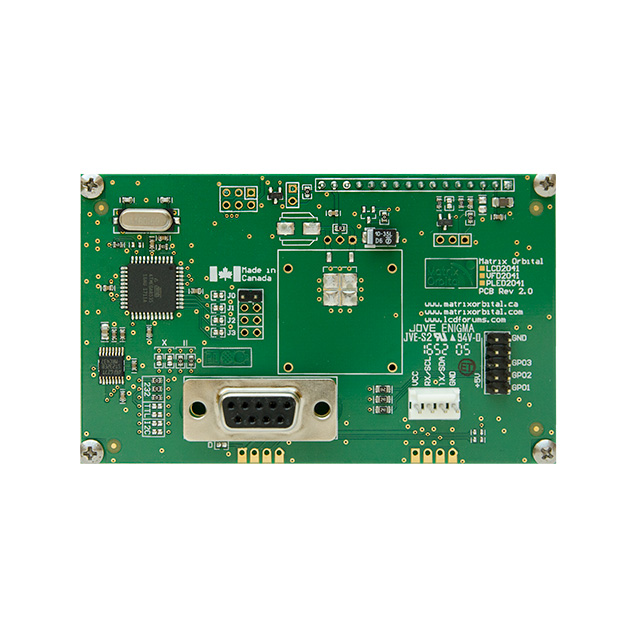

LCD2041-WB

Active

Matrix Orbital

LCD MODULE 80 DIG 20 X 4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCD2041-WB

Active

Matrix Orbital

LCD MODULE 80 DIG 20 X 4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCD2041-WB

Background Color	Blue
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Display Format [x]	20
Display Format [y]	4
Display Type	LCD - Monochrome
Dot Size [x]	0.55 mm
Dot Size [y]	0.55 mm
Interface	TTL, I2C, RS-232
Number of Characters	80
Outline L x W x H [x]	98 mm
Outline L x W x H [y]	60 mm
Outline L x W x H [z]	30.5 mm
Text Color	White
Viewing Area [x]	70.4 mm
Viewing Area [y]	20.8 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

LCD2041 Series

Part	Number of Characters	Dot Size [x]	Dot Size [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Background Color	Display Type	Text Color	Viewing Area [x]	Viewing Area [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Character Format [y]	Character Format [x]	Display Format [y]	Display Format [x]	Operating Temperature [Min]	Operating Temperature [Max]
Matrix Orbital LCD2041-R-V	80	0.55 mm	0.55 mm	15 V	9 V	Black	LCD - Monochrome	Red	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20
Matrix Orbital LCD2041-WB	80	0.55 mm	0.55 mm	5.25 V	4.75 V	Blue	LCD - Monochrome	White	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20
Matrix Orbital LCD2041-R-VPT	80	0.55 mm	0.55 mm	35 V	9 V	Black	LCD - Monochrome	Red	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20
Matrix Orbital LCD2041-IY-E	80	0.55 mm	0.55 mm	5.25 V	4.75 V	Black	LCD - Monochrome	Yellow	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20	-20 C	70 °C
Matrix Orbital LCD2041-GW-VPT	80	0.55 mm	0.55 mm	35 V	9 V	White	LCD - Monochrome	Gray	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20
Matrix Orbital LCD2041-GW-E	80	0.55 mm	0.55 mm	5.25 V	4.75 V	White	LCD - Monochrome	Gray	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20	-20 C	70 °C
Matrix Orbital LCD2041-GW-V	80	0.55 mm	0.55 mm	15 V	9 V	White	LCD - Monochrome	Gray	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20
Matrix Orbital LCD2041-WB-VPT-E	80	0.55 mm	0.55 mm	35 V	9 V	Blue	LCD - Monochrome	White	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20	-20 C	70 °C
Matrix Orbital LCD2041-VPT-E	80	0.55 mm	0.55 mm	35 V	9 V	Yellow/Green	LCD - Monochrome	Black	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20	-20 C	70 °C
Matrix Orbital LCD2041-GW-V-E	80	0.55 mm	0.55 mm	15 V	9 V	White	LCD - Monochrome	Gray	70.4 mm	20.8 mm	60 mm	30.5 mm	98 mm	I2C RS-232 TTL	8 Dots	5 Dots	4	20	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.95
		25	$ 62.40
		50	$ 60.84
		100	$ 57.72

Description

General part information

LCD2041 Series

Character Display Module 5 x 8 Dots LCD - Monochrome I2C, RS-232, TTL 98.00mm x 60.00mm x 30.50mm
