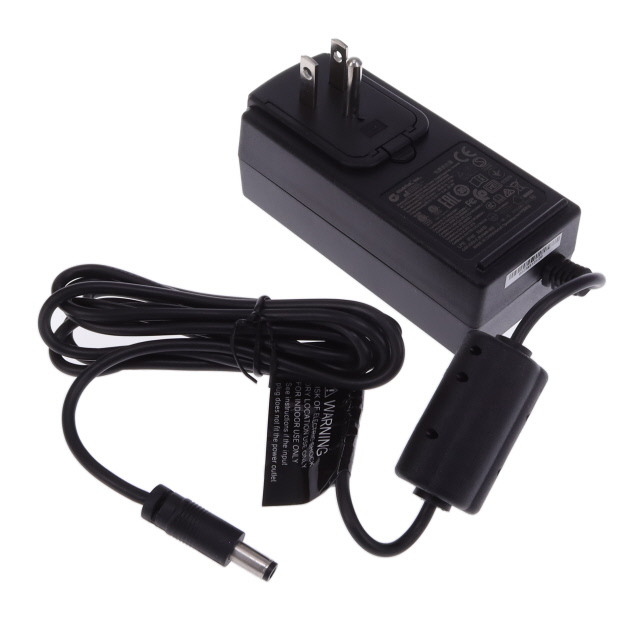

RR9LE2500LCPIMNAR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 30W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LE2500LCPIMNAR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CCC, FCC, RCM, UKRSepro, LPS, S-Mark, cETLus, CE, CB, EAC, VCCI
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	2.5 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class I), Desktop
Input Connector	IEC 320-C6, Multi-Blade (Single Blade Included)
Input Type	Multi-Blade (Single Blade Included), Cord (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	4.02 in
Size / Dimension [x]	102.2 mm
Size / Dimension [y]	1.87 "
Size / Dimension [y]	47.5 mm
Size / Dimension [z]	36.7 mm
Size / Dimension [z]	1.44 "
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Power (Watts)	Standard Number	Efficiency	Current - Output (Max) [Max]	Applications	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Cord Length	Cord Length	Approval Agency	Input Type	No Load Power Consumption [Max]	Input Connector
GlobTek, Inc. RR9LE2500LCPCIM(R6B)	Desktop Wall Mount (Class I)	Barrel Plug	2.5 mm 5.5 mm	11 mm	Positive Center	-10 °C	40 °C	90 VAC	264 VAC	12 V	30 W	60335-1 60601-1 60950-1 62368-1	CoC Tier 2 Level VI	2.5 A	Household Appliances ITE (Commercial) Medical	International	1.87 "	4.02 in	47.5 mm	102.2 mm	36.7 mm	1.44 "	1.83 m	72 in	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	Cord (Sold Separately) Multi-Blade (Included)	75 mW
GlobTek, Inc. RR9LE2500LCPIMNAR6B	Desktop Wall Mount (Class I)	Barrel Plug	2.5 mm 5.5 mm	11 mm	Positive Center	-10 °C	40 °C	90 VAC	264 VAC	12 V	30 W	60335-1 60601-1 60950-1 62368-1	CoC Tier 2 Level VI	2.5 A	Household Appliances ITE (Commercial) Medical	International	1.87 "	4.02 in	47.5 mm	102.2 mm	36.7 mm	1.44 "	1.83 m	72 in	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	Cord (Sold Separately) Multi-Blade (Single Blade Included)	75 mW	IEC 320-C6 Multi-Blade (Single Blade Included)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.56

General part information

12V 30 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord (Sold Separately), Multi-Blade (Single Blade Included) Input
