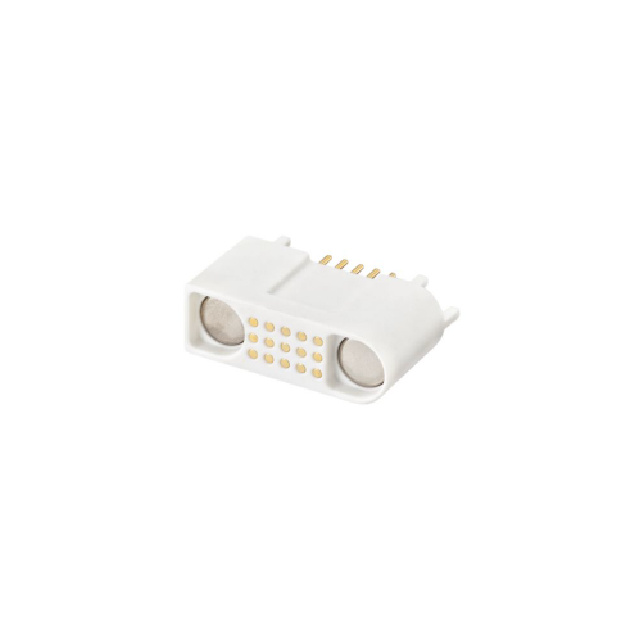

M9K115-400L

Obsolete

Rosenberger

CONN RCPT 15POS 0.1 GOLD PCB

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN RCPT 15POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	M9K115-400L

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	1.5 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	White
Insulation Height	0.768 "
Insulation Height	19.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	12 V

Part	Contact Material	Number of Positions	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Termination	Insulation Color	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Features	Fastening Type	Connector Type
Rosenberger M9K115-400L	Brass	15	3	2.54 mm	0.1 in	Through Hole	Circular	UL94 V-0	All	0.1 in	2.54 mm	1.5 A	Board to Cable/Wire	0.768 "	19.5 mm	Gold	Female Socket	Solder	White	Polybutylene Terephthalate (PBT)	65 °C	-25 °C	12 V	Board Guide	Latch Holder	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
