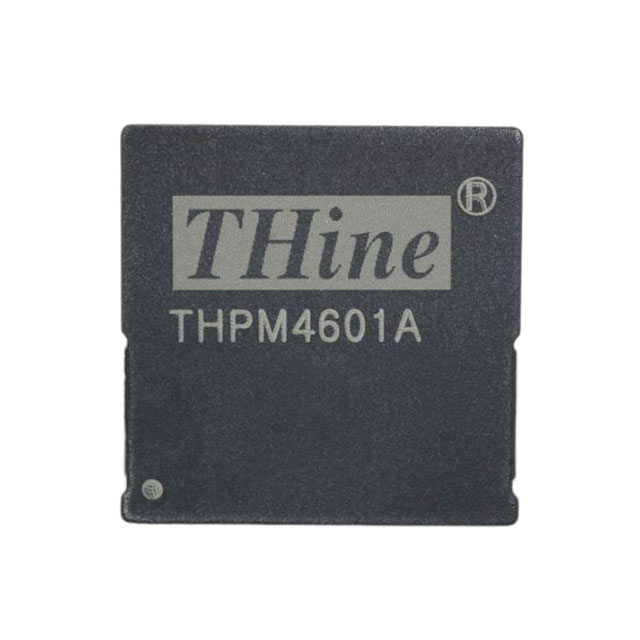

THPM4601A
ActiveCEL
DC DC CONVERTER 0.6-5.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THPM4601A
ActiveCEL
DC DC CONVERTER 0.6-5.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THPM4601A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 12 A |
| Efficiency | 95 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 133-BLGA Module |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [y] | 15.2 mm |
| Size / Dimension [y] | 0.6 in |
| Size / Dimension [z] | 3.2 mm |
| Size / Dimension [z] | 0.13 in |
| Supplier Device Package | 133-LGA (15.2x15.2) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 27.49 | |
| 10 | $ 25.35 | |||
| 25 | $ 24.21 | |||
| Digi-Reel® | 1 | $ 27.49 | ||
| 10 | $ 25.35 | |||
| 25 | $ 24.21 | |||
| Tape & Reel (TR) | 250 | $ 17.63 | ||
Description
General part information
THPM4601 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 12A 4V - 16V Input
