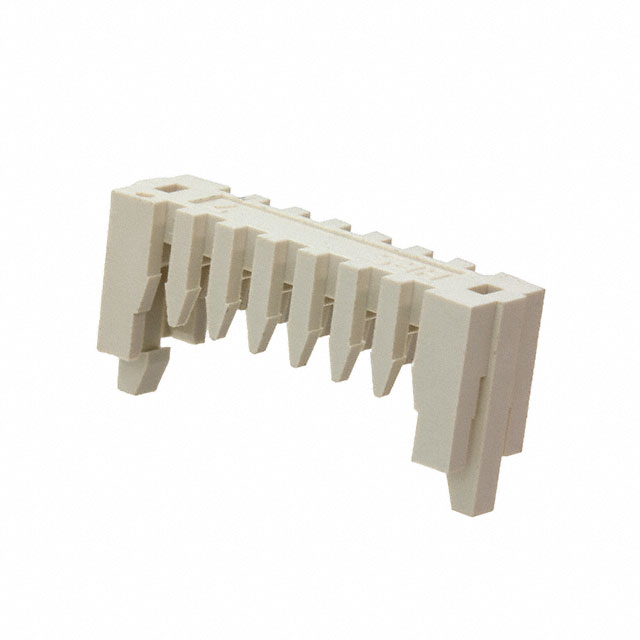

DF1-7A1.33

LTB

Hirose Electric USA, Inc.

IDC PROTECTOR 7POS 24AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF1-7A1.33

LTB

Hirose Electric USA, Inc.

IDC PROTECTOR 7POS 24AWG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1-7A1.33

Accessory Type	Cap (Cover)
Features	24 AWG
For Use With/Related Products	DF1 Series
Number of Positions	7

DF1-7 Series

Part	Cable Termination	Connector Type	Contact Type	Features	Number of Rows	Mounting Type	Wire Gauge	Color	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Wire Type	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Color	Number of Positions Loaded	Termination	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Material	Fastening Type	Style	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Accessory Type	Features	For Use With/Related Products	Features [Min]	Features [Max]	Contact Termination	Note
Hirose Electric USA, Inc. DF1-7S-2.5R26(05)	IDC	Socket	Female Socket	Feed Through	1	Free Hanging (In-Line)	26 AWG	Brown	7	Tin	0.098 in	2.5 mm	Discrete
Hirose Electric USA, Inc. DF1-7S-2.5R24(05)	IDC	Socket	Female Socket	Feed Through	1	Free Hanging (In-Line)	24 AWG	Brown	7	Tin	0.098 in	2.5 mm	Discrete
Hirose Electric USA, Inc. DF1-7P-2.5DS(05)		Header	Male Pin		1	Through Hole Right Angle			7					0.118 in	3 mm	Square	0.177 in	4.5 mm	1 µm	39.4 µin	Shrouded - 1 Wall	Brown	All	Solder	Tin	-30 ░C	85 °C	UL94 V-0	2.5 mm	0.098 in	3 A	Brass	Friction Lock	Board to Cable/Wire	Nylon Polyamide (PA)	250 VDC	6 mm	0.236 in
Hirose Electric USA, Inc. DF1-7A1.33									7																														Cap (Cover)	24 AWG	DF1 Series
Hirose Electric USA, Inc. DF1-7A1.05									7																														Cap (Cover)		DF1 Series	26 AWG	28 AWG
Hirose Electric USA, Inc. DF1-7S-2.5C		Socket	Female Socket		1	Free Hanging (In-Line)		Brown	7		0.098 in	2.5 mm														-30 ░C	85 °C								Nylon Polyamide (PA)									Crimp	Contacts Not Included
Hirose Electric USA, Inc. DF1-7S-2.5R28(05)	IDC	Socket	Female Socket	Feed Through	1	Free Hanging (In-Line)	28 AWG	Brown	7	Tin	0.098 in	2.5 mm	Discrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.31
		10	$ 0.24
		100	$ 0.18
		500	$ 0.15
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.11

Description

General part information

DF1-7 Series

Connector Cap (Cover) For DF1 Series
