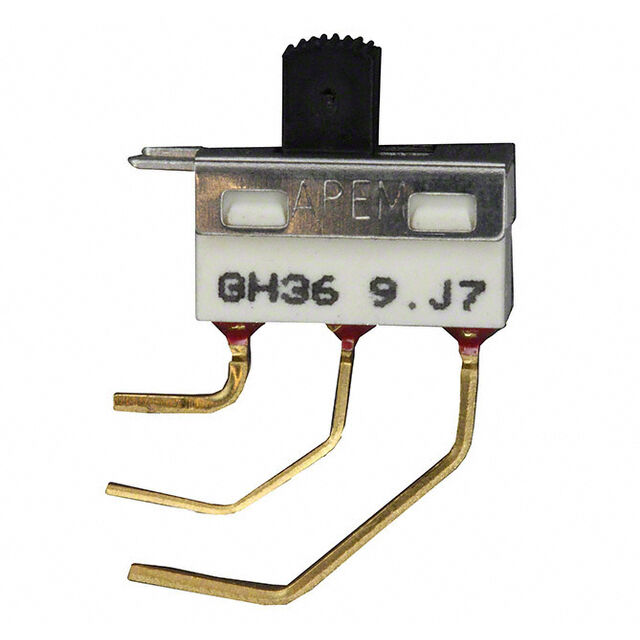

GH36WW00001

Active

APEM

SWITCH SLIDE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

APEM

SWITCH SLIDE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	GH36WW00001

Actuator Length [x]	4.7 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Gold
Contact Material	Brass
Contact Timing	Not Specified
Current Rating (Amps)	0.4 VA
Electrical Life	60000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.2 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Contact Material	Termination Style	Contact Finish	Contact Timing	Voltage Rating - DC	Actuator Type	Switch Function	Current Rating (Amps)	Features	Switch Travel [custom]	Electrical Life	Mounting Type	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Circuit	Voltage Rating - AC
APEM GH36WW00001	Brass	PC Pin	Gold	Not Specified	20 V	Standard	On-On	0.4 VA	Epoxy Sealed Terminals	2.2 mm	60000 Cycles	Right Angle Through Hole Vertical	4.7 mm	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	SPDT	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 9.54

General part information

Slide Switch SPDT Through Hole, Right Angle, Vertical
