OSTNR241101

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR241101

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	24
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	150 V

Part	Material Flammability Rating	Voltage - UL	Features	Contact Mating Finish	Number of Levels	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Housing Material	Number of Positions	Header Orientation	Positions Per Level	Insulation Height	Insulation Height	Termination Style	Current - UL	Type	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]
On Shore Technology Inc. OSTNR241200	UL94 V-0	300 V	Mating Flange	Tin	2	Copper	Through Hole	-40 °C	115 °C	Black	Liquid Crystal Polymer (LCP)	24	Vertical	12	11.6 mm	0.457 in	Solder	8 A	Header Male Pins Shrouded (4 Side)	0.079 in	2 mm	3.5 mm	0.138 in
On Shore Technology Inc. OSTNR241101	UL94 V-0	150 V		Tin	2	Copper	Through Hole	-40 °C	115 °C	Black	Liquid Crystal Polymer (LCP)	24	90° Right Angle	12	10.8 mm	0.425 in	Solder	8 A	Header Male Pins Shrouded (4 Side)	0.079 in	2 mm	3.5 mm	0.138 in
On Shore Technology Inc. OSTNR241201	UL94 V-0	150 V	Mating Flange	Tin	2	Copper	Through Hole	-40 °C	115 °C	Black	Liquid Crystal Polymer (LCP)	24	90° Right Angle	12	10.8 mm	0.425 in	Solder	8 A	Header Male Pins Shrouded (4 Side)	0.079 in	2 mm	3.5 mm	0.138 in
On Shore Technology Inc. OSTNR241100	UL94 V-0	300 V		Tin	2	Copper	Through Hole	-40 °C	115 °C	Black	Liquid Crystal Polymer (LCP)	24	Vertical	12	11.6 mm	0.457 in	Solder	8 A	Header Male Pins Shrouded (4 Side)	0.079 in	2 mm	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

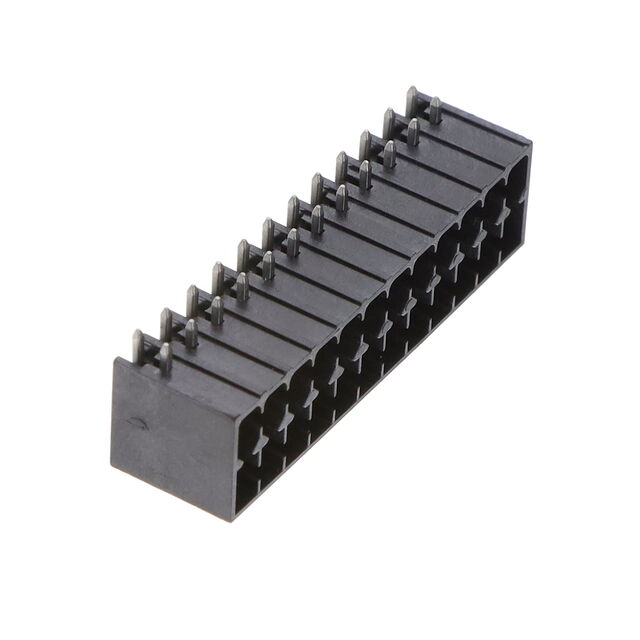

24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
