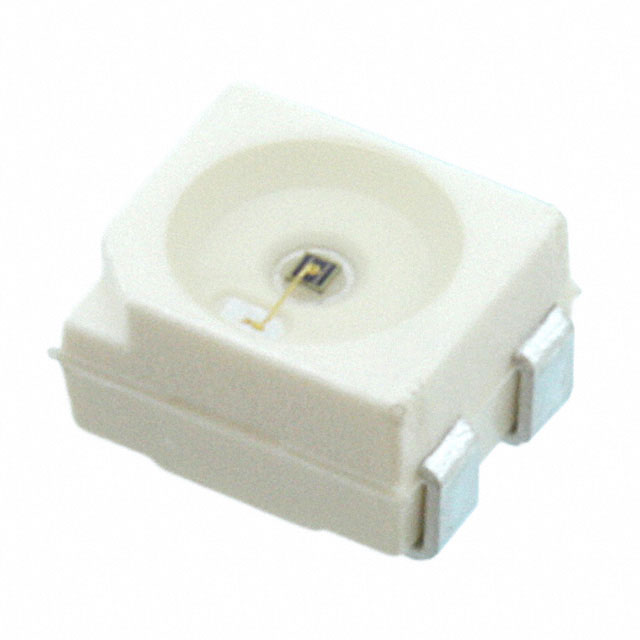

SFH 4250-S
Activeams-OSRAM USA INC.
POWER TOPLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 4250-S
Activeams-OSRAM USA INC.
POWER TOPLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4250-S |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 4-PLCC |
| Radiant Intensity (Ie) Min @ If [Min] | 18 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.06 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 1.06 | ||
| 10 | $ 0.69 | |||
| 100 | $ 0.45 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 2000 | $ 0.33 | ||
| 6000 | $ 0.32 | |||
| 10000 | $ 0.32 | |||
Description
General part information
SFH4250 Series
Infrared (IR) Emitter 860nm 1.5V 100mA 18mW/sr @ 100mA 120° 4-PLCC
