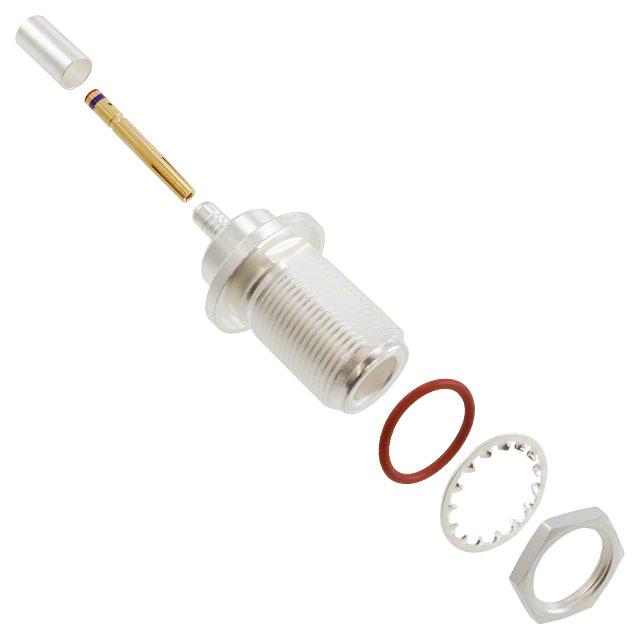

082-4438

Obsolete

Amphenol RF

CONN N JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Obsolete

Amphenol RF

CONN N JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	082-4438

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Mating Cycles	Housing Color	Voltage Rating	Dielectric Material	Connector Type	Frequency - Max [Max]	Center Contact Plating	Insertion Loss	Includes	Shield Termination	Mounting Feature	Number of Ports	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Cable Group	Cable Group	Connector Style	Impedance	Contact Termination
Amphenol RF 082-4438	500	Silver	1500 V	Polytetrafluoroethylene (PTFE)	Female Socket Jack	11 GHz	Silver	0.15 dB	1 Connector 1 Lockwasher 1 Nut	Crimp	Bulkhead - Front Side Nut	1	Brass	Nickel	-65 ░C	165 °C	Beryllium Copper	RG-55	142 223 400	N Type	50 Ohms	Crimp Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder
