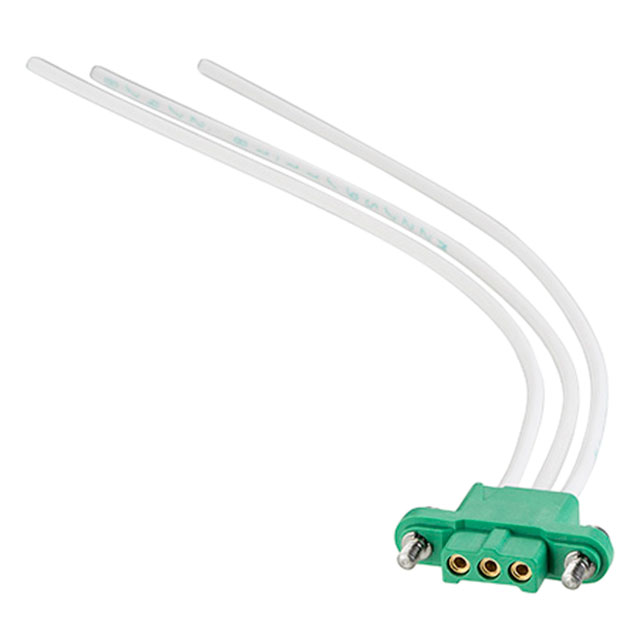

M300-FC50305F2-0150L

Active

Harwin Inc.

3 POS. FEMALE SIL 18AWG CABLE ASSEMBLY, 150MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

3 POS. FEMALE SIL 18AWG CABLE ASSEMBLY, 150MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-FC50305F2-0150L

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Screw Lock, Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Rows	1
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Number of Rows	Cable Termination	Features	Contact Finish	Shielding	Connector Type	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector
Harwin Inc. M300-FC50305F2-0150L	1	Crimp	Polarizing Key Screw Lock	Gold	Unshielded	Socket to Individual Wire Leads	150 mm	5.91 "	0.492 ft	5.9 µin	0.15 µm	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.492' (150.00mm, 5.91")
