220CMQ025

Active

SMC Diode Solutions

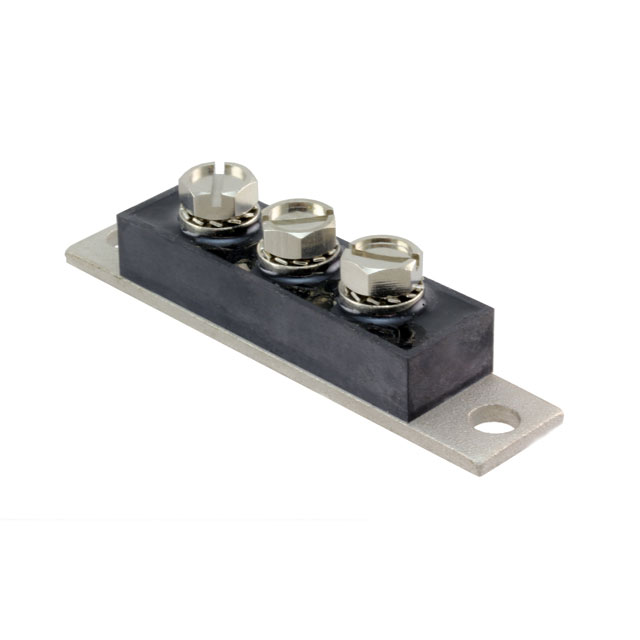

DIODE MOD SCHOTT 25V 110A PRM4

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 25V 110A PRM4

Technical Specifications

Parameters and characteristics for this part

Specification	220CMQ025

Current - Average Rectified (Io) (per Diode)	110 A
Current - Reverse Leakage @ Vr	10 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	PRM4
Speed	200 mA, 500 ns
Supplier Device Package	PRM4 (Isolated)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	25 V
Voltage - Forward (Vf) (Max) @ If	480 mV

Part	Technology	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed	Current - Reverse Leakage @ Vr	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 220CMQ025	Schottky	1 Pair Common Cathode	150 °C	-55 °C	110 A	25 V	PRM4 (Isolated)	200 mA 500 ns	10 mA	PRM4	Chassis Mount	480 mV
SMC Diode Solutions 220CMQ030	Schottky	1 Pair Common Cathode	150 °C	-55 °C	110 A	30 V	PRM4 (Isolated)	200 mA 500 ns	10 mA	PRM4	Chassis Mount	480 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	198	$ 49.91

General part information

Diode Array 1 Pair Common Cathode 25 V 110A Chassis Mount PRM4
