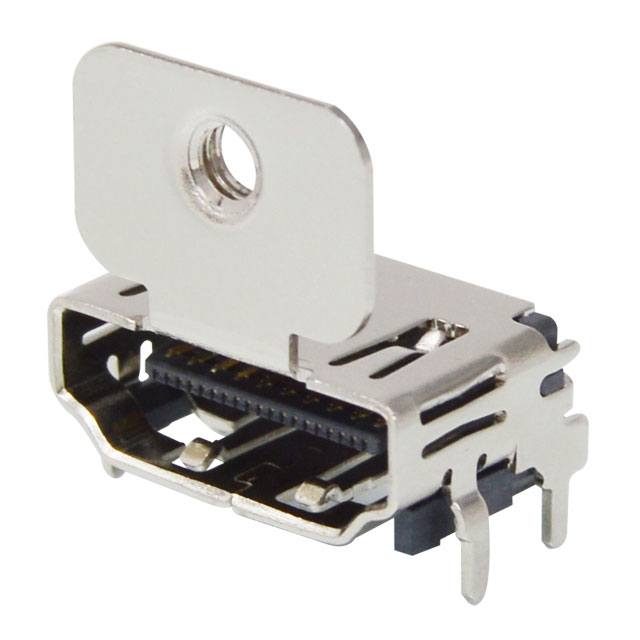

KDMIX-FS2-WS-B15TR-2.1
ActiveKycon, Inc.
CONN HDMI RECEPT SMT RA HI-TEMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KDMIX-FS2-WS-B15TR-2.1
ActiveKycon, Inc.
CONN HDMI RECEPT SMT RA HI-TEMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KDMIX-FS2-WS-B15TR-2.1 |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.74 | |
| 10 | $ 2.86 | |||
| 25 | $ 2.57 | |||
| 50 | $ 2.38 | |||
| Digi-Reel® | 1 | $ 3.74 | ||
| 10 | $ 2.86 | |||
| 25 | $ 2.57 | |||
| 50 | $ 2.38 | |||
| Tape & Reel (TR) | 100 | $ 2.21 | ||
| 200 | $ 2.05 | |||
| 300 | $ 1.96 | |||
| 500 | $ 1.86 | |||
| 700 | $ 1.80 | |||
| 1000 | $ 1.74 | |||
| 2500 | $ 1.59 | |||
| 5000 | $ 1.49 | |||
Description
General part information
KDMIX-FS2 Series
HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
