PZC03SGAN

Obsolete

Sullins Connector Solutions

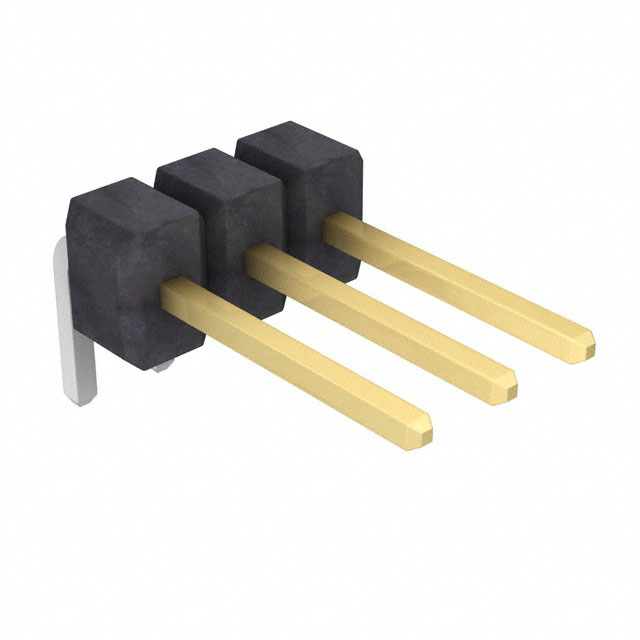

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSquare Post Header Datasheet

PZC03SGAN

Obsolete

Sullins Connector Solutions

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

DocumentsSquare Post Header Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC03SGAN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC03 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Contact Material	Style	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Contact Type	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Shrouding	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Number of Positions	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PZC03SGBN	2.54 µm	100 µin	Solder	0.22 in	5.58 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	1	All	Male Pin	Through Hole Right Angle	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	3.56 mm	0.14 in
Sullins Connector Solutions PZC03SGAN	2.54 µm	100 µin	Solder			Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	1	All	Male Pin	Through Hole Right Angle	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	3.56 mm	0.14 in	0.12 in	3.05 mm
Sullins Connector Solutions PZC03DBBN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	2	All	Male Pin	Through Hole Right Angle	0.23 in		Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	6.1 mm	0.24 in			2.54 mm	0.1 in	5.84 mm	6
Sullins Connector Solutions PZC03DFAN	2.54 µm	100 µin	Solder			Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	2	All	Male Pin	Through Hole	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in	0.12 in	3.05 mm	2.54 mm	0.1 in		6	0.538 "	13.67 mm
Sullins Connector Solutions PZC03DFEN	2.54 µm	100 µin	Solder	0.52 "	13.21 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	2	All	Male Pin	Through Hole	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in			2.54 mm	0.1 in		6	0.938 in	23.83 mm
Sullins Connector Solutions PZC03SAGN	2.54 µm	100 µin	Solder			Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	1	All	Male Pin	Through Hole	0.23 in		Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in	0.72 "	18.29 mm			5.84 mm		1.05 in	26.67 mm
Sullins Connector Solutions PZC03SFBN	2.54 µm	100 µin	Solder	0.22 in	5.58 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	1	All	Male Pin	Through Hole	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in							0.638 in	16.21 mm
Sullins Connector Solutions PZC03DABN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	2	All	Male Pin	Through Hole	0.23 in		Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in			2.54 mm	0.1 in	5.84 mm	6	0.56 in	14.22 mm
Sullins Connector Solutions PZC03DADN	2.54 µm	100 µin	Solder			Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	2	All	Male Pin	Through Hole	0.23 in		Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in	0.42 in	10.67 mm	2.54 mm	0.1 in	5.84 mm	6	0.75 in	19.05 mm
Sullins Connector Solutions PZC03SFEN	2.54 µm	100 µin	Solder	0.52 "	13.21 mm	Tin	UL94 V-0	Copper Alloy	Board to Board Cable	Push-Pull	10 çin	0.25 çm	3 A	Gold	1	All	Male Pin	Through Hole	0.318 "	8.08 mm	Polyester Thermoplastic	Square	0.1 in	2.54 mm	Black	Header	Unshrouded	2.54 mm	0.1 in							0.938 in	23.83 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PZC03 Series

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
