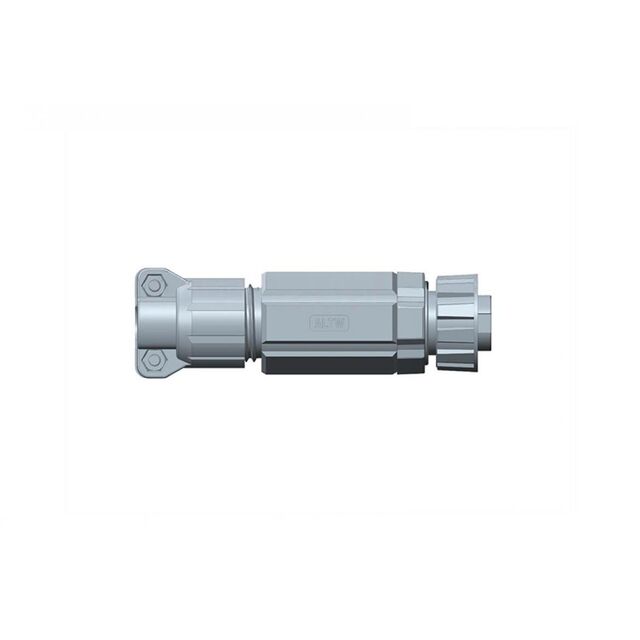

UMN-05BFFB-SL7001

Active

Amphenol LTW

NMEA MINI-C SCREW-IN

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA MINI-C SCREW-IN

Technical Specifications

Parameters and characteristics for this part

Specification	UMN-05BFFB-SL7001

Cable Opening [custom]	0.315 in, 0.48 in
Cable Opening [custom]	12.2 mm
Cable Opening [custom]	8 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	8 A
Features	Coupling Nut, Cable Clamp
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 V

Part	Features	Contact Material	Current Rating (Amps)	Color	Voltage Rating	Termination	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Ingress Protection	Mounting Type	Insert Material	Shell Material	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding
Amphenol LTW UMN-05BFFB-SL7001	Cable Clamp Coupling Nut	Copper Alloy	8 A	Black	600 V	Screw	Female Sockets Plug	0.315 in 0.48 in	12.2 mm	8 mm	Gold	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Keyed	Plastic	-20 C	70 °C	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Screw
