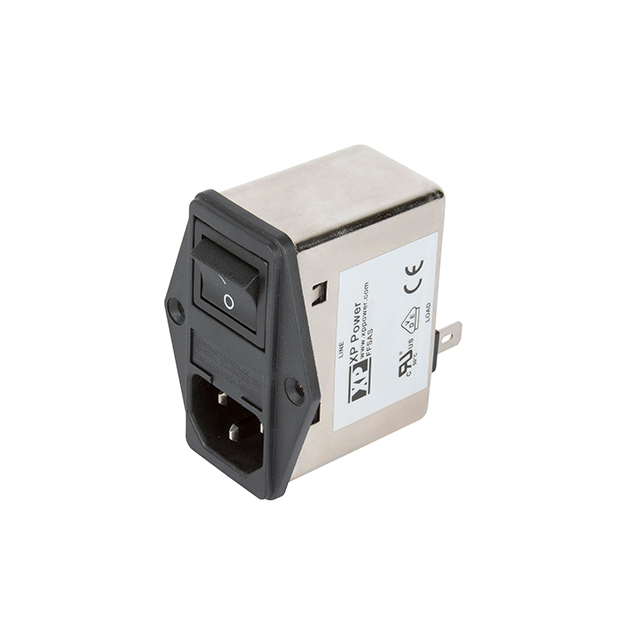

FFSAS06BFR
ActiveXP POWER
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FFSAS06BFR
ActiveXP POWER
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FFSAS06BFR |
|---|---|
| Accomodates a Fuse | True |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 6 A |
| Features | Bleed Resistor, Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 29.4 mm |
| Panel Cutout Dimensions [y] | 60.8 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 230 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 25.20 | |
| 5 | $ 24.44 | |||
| 10 | $ 23.69 | |||
| 25 | $ 22.68 | |||
| 100 | $ 21.17 | |||
Description
General part information
FFSAS06 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
