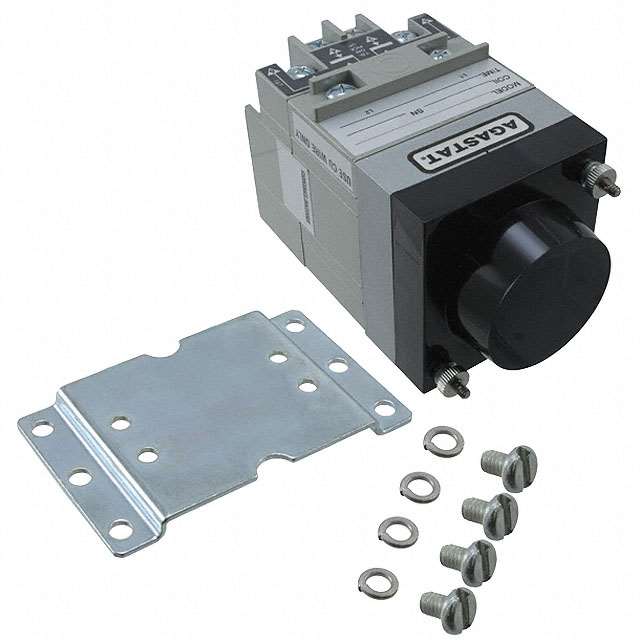

1-1423158-3

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10MIN 10A 240V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10MIN 10A 240V

Technical Specifications

Parameters and characteristics for this part

Part	Function	Voltage - Supply	Delay Time [Max]	Delay Time [Min]	Termination Style	Contact Rating @ Voltage	Circuit	Timing Initiate Method	Timing Adjustment Method	Relay Type
TE Connectivity Aerospace, Defense and Marine 1-1423158-2
TE Connectivity Aerospace, Defense and Marine 2-1423158-6
TE Connectivity Aerospace, Defense and Marine 1423158-3
TE Connectivity Aerospace, Defense and Marine 3-1423158-8	On-Delay	120 VAC	1 Sec	0.1 Sec	Screw Terminal	10 A 240 VAC	DPDT (2 Form C)	Input Voltage	Hand Dial	Mechanical Relay
TE Connectivity Aerospace, Defense and Marine 1-1423158-3	On-Delay	115 VAC	10 Min	1 Min	Quick Connect	10 A 240 VAC	DPDT (2 Form C)	Input Voltage	Hand Dial	Mechanical Relay
TE Connectivity Aerospace, Defense and Marine 1423158-4
TE Connectivity Aerospace, Defense and Marine 1423158-9
TE Connectivity Aerospace, Defense and Marine 1-1423158-8
TE Connectivity Aerospace, Defense and Marine 1423158-1
TE Connectivity Aerospace, Defense and Marine 1423158-7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 1237.16

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 1 Min ~ 10 Min Delay 10A @ 240VAC Panel Mount
