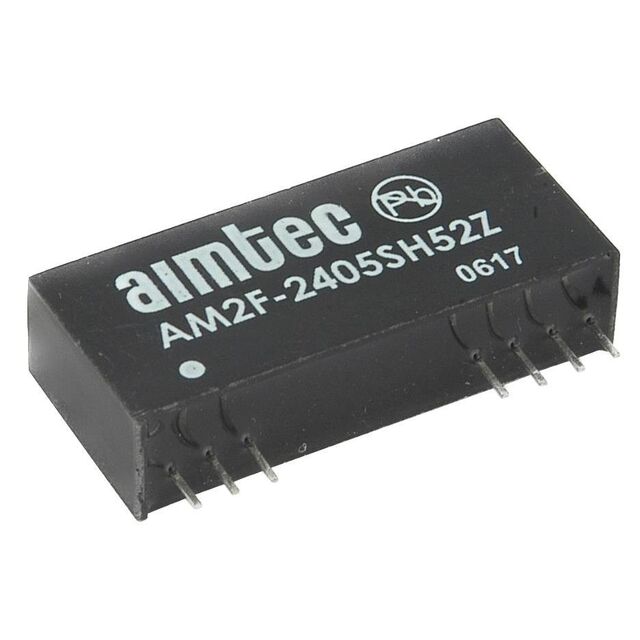

AM2F-1224SH30Z

Active

aimtec

DC DC CONVERTER 24V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM2F-1224SH30Z

Active

aimtec

DC DC CONVERTER 24V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM2F-1224SH30Z

Applications	ITE (Commercial)
Current - Output (Max) [Max]	83 mA
Efficiency	72 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	12-SIP Module
Power (Watts)	2 W
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

AM2F Series

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Type	Voltage - Input (Min) [Min]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Package / Case	Power (Watts)	Current - Output (Max) [Max]
aimtec AM2F-0518SH30Z	18 V	-25 °C	85 °C	5.5 V	1	Through Hole	Isolated Module	4.5 V	ITE (Commercial)	69 %	0.32 in	1.26 in	32 mm	0.55 in	14 mm	8.1 mm	3000 V	12-SIP Module	2 W
aimtec AM2F-0518SH52Z	18 V	-25 °C	85 °C	5.5 V	1	Through Hole	Isolated Module	4.5 V	ITE (Commercial)	69 %	0.32 in	1.26 in	32 mm	0.55 in	14 mm	8.1 mm	5.2 kV	12-SIP Module	2 W
aimtec AM2F-2418SH30Z	18 V	-25 °C	85 °C	26.4 V	1	Through Hole	Isolated Module	21.6 V	ITE (Commercial)	71 %							3000 V	12-SIP Module	2 W
aimtec AM2F-2403SH52Z	3.3 V	-25 °C	85 °C	26.4 V	1	Through Hole	Isolated Module	21.6 V	ITE (Commercial)								5.2 kV	12-SIP Module	2 W	500 mA
aimtec AM2F-2415SZ	15 V	-25 °C	85 °C	26.4 V	1	Through Hole	Isolated Module	21.6 V	ITE (Commercial)	67 %							1000 V	12-SIP Module	2 W	134 mA
aimtec AM2F-2418SZ	18 V	-25 °C	85 °C	26.4 V	1	Through Hole	Isolated Module	21.6 V	ITE (Commercial)	71 %							1000 V	12-SIP Module	2 W
aimtec AM2F-1215SZ	15 V	-25 °C	85 °C	13.2 V	1	Through Hole	Isolated Module	10.8 V	ITE (Commercial)	68 %							1000 V	12-SIP Module	2 W	134 mA
aimtec AM2F-1205SZ	5 V	-25 °C	85 °C	13.2 V	1	Through Hole	Isolated Module	10.8 V	ITE (Commercial)	67 %	0.32 in	1.26 in	32 mm	0.55 in	14 mm	8.1 mm	1000 V	12-SIP Module	2 W	400 mA
aimtec AM2F-0518SZ	18 V	-25 °C	85 °C	5.5 V	1	Through Hole	Isolated Module	4.5 V	ITE (Commercial)	69 %	0.32 in	1.26 in	32 mm	0.55 in	14 mm	8.1 mm	1000 V	12-SIP Module	2 W
aimtec AM2F-1224SH30Z	24 V	-25 °C	85 °C	13.2 V	1	Through Hole	Isolated Module	10.8 V	ITE (Commercial)	72 %							3000 V	12-SIP Module	2 W	83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.60
		5	$ 8.51
		10	$ 8.43
		20	$ 8.34
		40	$ 8.26
		80	$ 8.18
		160	$ 8.10

Description

General part information

AM2F Series

Isolated Module DC DC Converter 1 Output 24V 83mA 10.8V - 13.2V Input
