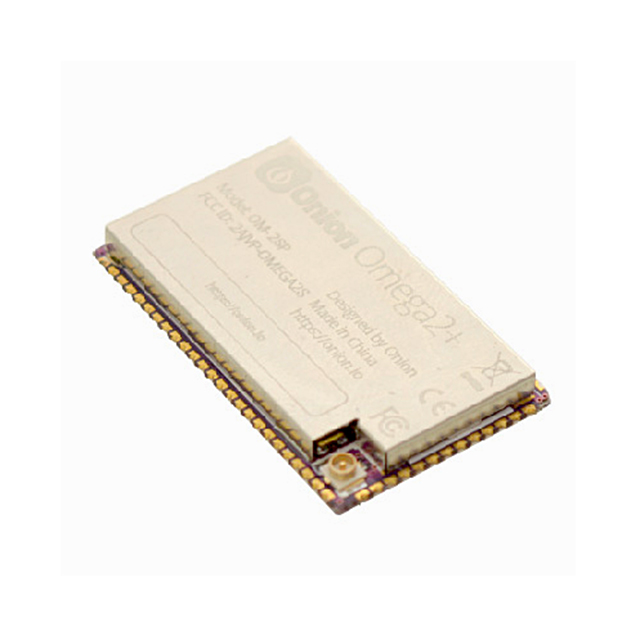

OM-O2S

Active

Onion Corporation

RF TXRX MODULE WIFI U.FL SMD

Search across all available documentation for this part.

Active

Onion Corporation

RF TXRX MODULE WIFI U.FL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	OM-O2S

Antenna Type	Antenna Not Included, U.FL
Data Rate	150 Mbps
Frequency	2.4 GHz
Memory Size	64 MB, 16 MB
Mounting Type	Surface Mount
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Package / Case	Module
Protocol	802.11b/g/n
RF Family/Standard	WiFi
Serial Interfaces	Ethernet, PWM, I2C, SPI, SDIO, I2S, UART, USB
Utilized IC / Part	MT7688AN
Voltage - Supply	3.3 V

Part	Package / Case	Mounting Type	Voltage - Supply	RF Family/Standard	Data Rate	Memory Size [custom]	Memory Size [custom]	Protocol	Utilized IC / Part	Antenna Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Serial Interfaces	Frequency	Memory Size
Onion Corporation OM-O2P	Module	Through Hole	3.3 V	WiFi	150 Mbps	32 MB	128 MB	802.11b/g/n	MT7688AN	Chip	55 °C	-10 °C	Ethernet I2C I2S PWM SDIO SPI UART USB	2.4 GHz
Onion Corporation OM-O2S	Module	Surface Mount	3.3 V	WiFi	150 Mbps			802.11b/g/n	MT7688AN	Antenna Not Included U.FL	55 °C	-10 °C	Ethernet I2C I2S PWM SDIO SPI UART USB	2.4 GHz	16 MB 64 MB
Onion Corporation OM-O2SP	Module	Surface Mount	3.3 V	WiFi	150 Mbps	32 MB	128 MB	802.11b/g/n	MT7688AN	Antenna Not Included U.FL	55 °C	-10 °C	Ethernet I2C I2S PWM SDIO SPI UART USB	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
