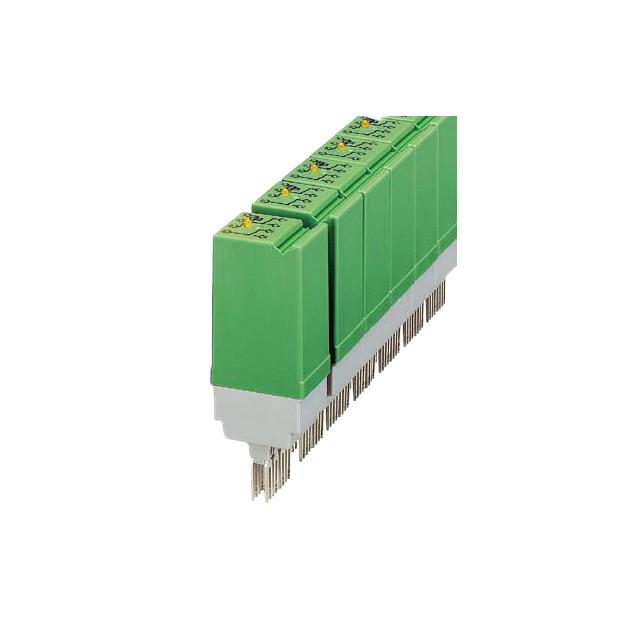

2829551
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 500MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2829551 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 21 mA |
| Coil Resistance | 1.14 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 0.5 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 30 VAC, 30 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 211.93 | |
Description
General part information
28295 Series
General Purpose Relay DPDT (2 Form C) Socketable
