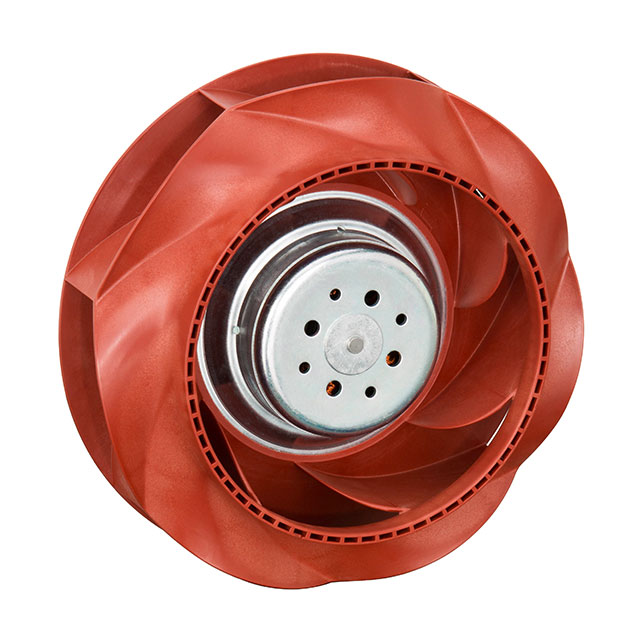

RER225-55/18/2TDMLO

Active

ebm-papst Inc.

FAN IMP MTRZD 225X99MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 225X99MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER225-55/18/2TDMLO

Air Flow	17.79 m³/min
Air Flow	635.4 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Operating Temperature [Max]	55 °C
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	82 W
RPM	2500 RPM
Size / Dimension [diameter]	225 mm
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	2.4 lbs
Weight	1.1 kg
Width [y]	99 mm

Part	Termination	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Features	Material - Blade	Weight	Weight	Width [y]	Bearing Type	RPM	Voltage - Rated [custom]	Lifetime @ Temp.	Air Flow	Air Flow	Ingress Protection
ebm-papst Inc. RER225-55/18/2TDMLO	4 Wire Leads	225 mm	55 °C	-20 °C	55 °C	-20 C	Motorized Impellers	72 VDC	36 VDC	82 W	PWM Control Speed Sensor (Tach)	Plastic Fiberglass Reinforced	2.4 lbs	1.1 kg	99 mm	Ball	2500 RPM	48 VDC	70000 Hrs	17.79 m³/min	635.4 CFM
ebm-papst Inc. RER225-63/18/2TDMP	4 Wire Leads	225 mm					Motorized Impellers	72 VDC	36 VDC		PWM Control Speed Sensor (Tach)	Plastic Fiberglass Reinforced			99 mm	Ball		48 VDC		22.09 mł/min	789 CFM	IP54 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 48VDC Round - 225mm Dia Ball 635.4 CFM (17.79m³/min) 4 Wire Leads
