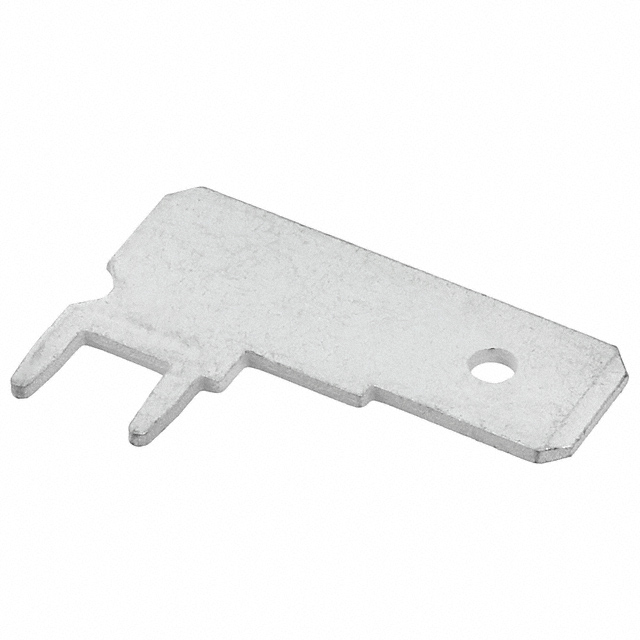

0197134001
ActiveMolex
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0197134001
ActiveMolex
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0197134001 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Through Hole, Right Angle |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Angled - 90° |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.19 | |||
Description
General part information
019713 Series
0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
