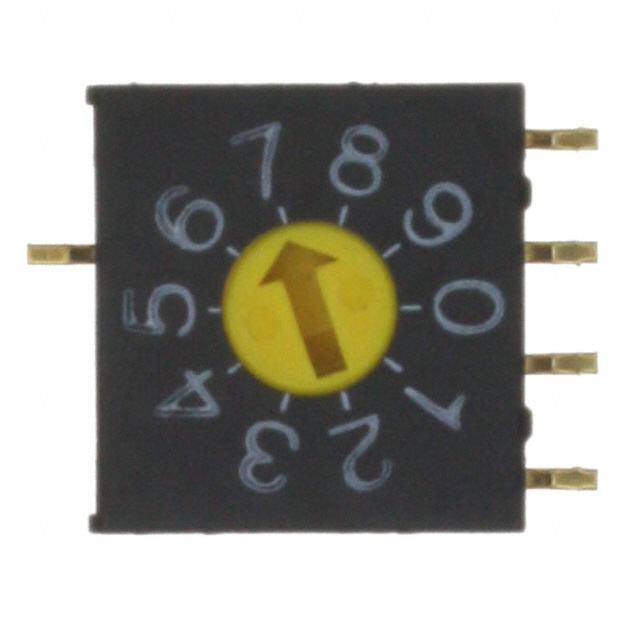

FR02FC10P-R

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Search across all available documentation for this part.

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	FR02FC10P-R

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.154 in
Height Above Board	3.9 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	False

Part	Washable	Actuator Level	Contact Finish	Voltage Rating	Circuit	Pitch [x]	Pitch	Pitch [x]	Termination Style	Number of Positions	Body Material	Mechanical Life	Length	Length	Mounting Type	Contact Material	Current Rating (Amps)	Height Above Board	Height Above Board	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life
NKK Switches FR02FC10P		Flush Recessed	Gold	5 V	BCD Complement	0.1 in	Full	2.54 mm	Gull Wing	10	Polyamide (PA) Nylon Glass Filled	10000 Steps	10 mm	0.394 in	Surface Mount	Copper Alloy	100 mA	0.154 in	3.9 mm	-25 °C	85 °C	Rotary for Tool	10000 Cycles
NKK Switches FR02FC10P-R		Flush Recessed	Gold	5 V	BCD Complement	0.1 in	Full	2.54 mm	Gull Wing	10	Polyamide (PA) Nylon Glass Filled	10000 Steps	10 mm	0.394 in	Surface Mount	Copper Alloy	100 mA	0.154 in	3.9 mm	-25 °C	85 °C	Rotary for Tool	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.66
Newark	Each	500	$ 4.55
		1000	$ 4.28

General part information

Dip Switch BCD Complement 10 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
