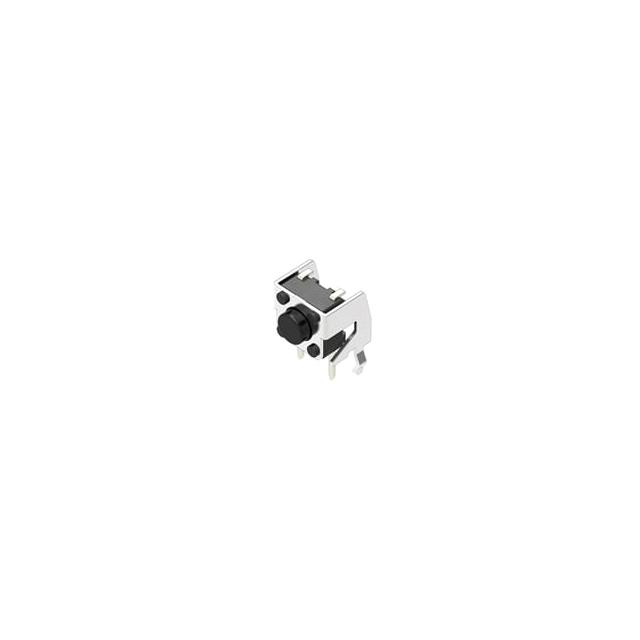

SKHHLMA010

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.05A 12VDC 0.98N THRU-HOLE BULK

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.05A 12VDC 0.98N THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Mounting Type	Operating Force	Switch Travel	Termination Style	Actuator Length, Right Angle	Contact Rating @ Voltage	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Actuator Type	Illumination	Actuator Orientation
Alps Alpine SKHHLMA010	7.5 mm	6.55 mm	Through Hole Right Angle	100 gf	0.25 mm	PC Pin	3.85 mm	0.05 A 12 VDC	Off-Mom	90 °C	-40 °C	1000000 Cycles	SPST-NO	Standard	Non-Illuminated	Side Actuated
Alps Alpine SKHHLQA010	7.5 mm	6.55 mm	Through Hole Right Angle	100 gf	0.25 mm	PC Pin	8.35 mm	0.05 A 12 VDC	Off-Mom	90 °C	-40 °C	1000000 Cycles	SPST-NO	Standard	Non-Illuminated	Side Actuated
Alps Alpine SKHHLNA010	7.5 mm	6.55 mm	Through Hole Right Angle		0.25 mm	PC Pin	3.85 mm	0.05 A 12 VDC	Off-Mom	90 °C	-40 °C	500000 Cycles	SPST-NO	Standard	Non-Illuminated	Side Actuated
Alps Alpine SKHHLSA010	7.5 mm	6.55 mm	Through Hole Right Angle	260 gf	0.25 mm	PC Pin	8.35 mm	0.05 A 12 VDC	Off-Mom	90 °C	-40 °C	200000 Cycles	SPST-NO	Standard	Non-Illuminated	Side Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
