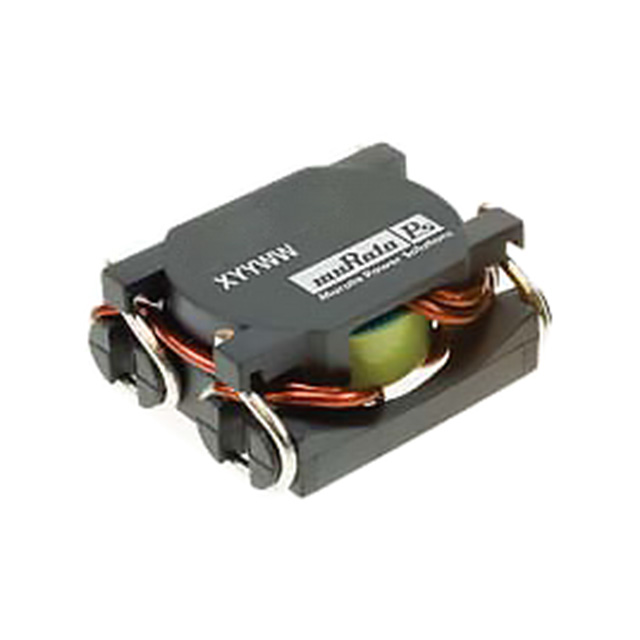

43212C

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.1UH 21A 2.22MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.1UH 21A 2.22MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	DC Resistance (DCR) [Max]	Shielding	Package / Case	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Type	Inductance
Murata Power Solutions Inc. 43212C-R	21 A	2.22 mOhm	Unshielded	Nonstandard	106 MHz	125 °C	-40 °C	15 %	Surface Mount	23.1 mm	20.3 mm	0.799 in	0.909 "	100 kHz	Toroidal	2.1 µH
Murata Power Solutions Inc. 43212C	21 A	2.22 mOhm	Unshielded	Nonstandard	106 MHz	125 °C	-40 °C	15 %	Surface Mount	23.1 mm	20.3 mm	0.799 in	0.909 "	100 kHz	Toroidal	2.1 µH
Murata Power Solutions Inc. 43402C-R	22.4 A	3.1 mOhm	Unshielded	Nonstandard	69 MHz	125 °C	-40 °C	15 %	Surface Mount	28.2 mm	25.4 mm	25.4 mm	1.11 in	100 kHz	Toroidal	4 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.1 µH Unshielded Toroidal Inductor 21 A 2.22mOhm Max Nonstandard
