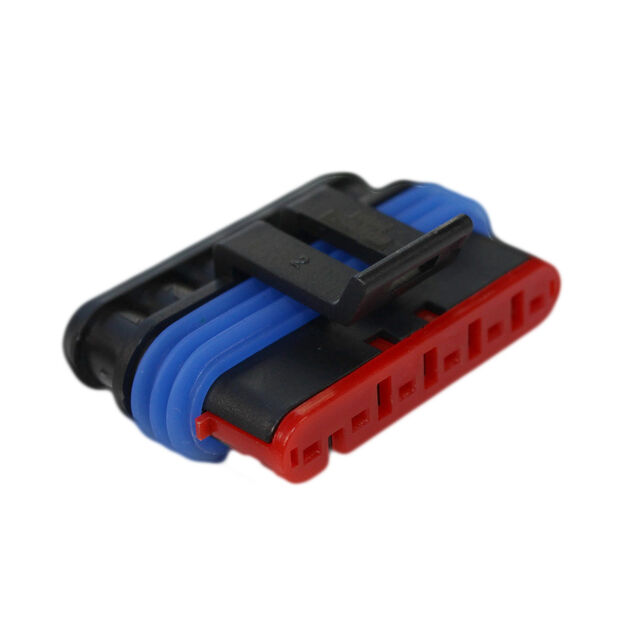

PX2001S06BK

Active

BULGIN LIMITED

AUTOMOTIVE CONNECTOR HOUSING, PX20 SERIES, RECEPTACLE, 6 POSITIONS

Search across all available documentation for this part.

Active

BULGIN LIMITED

AUTOMOTIVE CONNECTOR HOUSING, PX20 SERIES, RECEPTACLE, 6 POSITIONS

Technical Specifications

Parameters and characteristics for this part

Specification	PX2001S06BK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.236 in
Pitch [x]	6 mm

Part	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Connector Type	Fastening Type	Contact Termination	Mounting Type	Number of Rows	Insulation Material
BULGIN LIMITED PX2001S06BK	6	Female Socket	0.236 in	6 mm	Black	125 °C	-40 °C	Sealed	Receptacle	Latch Lock	Crimp	Free Hanging (In-Line)	1	Polybutylene Terephthalate (PBT) Glass Filled
BULGIN LIMITED PX2001S04BK	4	Female Socket	0.236 in	6 mm	Black	125 °C	-40 °C		Receptacle	Latch Lock	Crimp	Free Hanging (In-Line)	1	Polybutylene Terephthalate (PBT) Glass Filled
BULGIN LIMITED PX2001S02BK	2	Female Socket	0.236 in	6 mm	Black	125 °C	-40 °C		Receptacle	Latch Lock	Crimp	Free Hanging (In-Line)	1	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.69

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.236" (6.00mm)

Technical documentation and resources

No documents available
