LTM4614EV#PBF

Active

Analog Devices

DUAL 4A PER CHANNEL LOW VIN DC/DC ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R504 Reliability Data

LTM4614EV#PBF

Active

Analog Devices

DUAL 4A PER CHANNEL LOW VIN DC/DC ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

DocumentsDatasheet R504 Reliability Data

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM4614EV#PBF

Applications	ITE (Commercial)
Current - Output (Max)	4 A
Efficiency	95 %
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

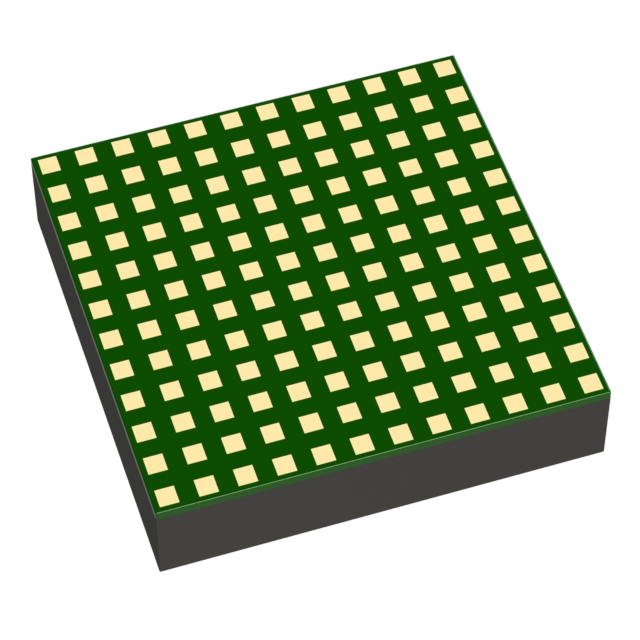

Package / Case	144-BLGA Module
Size / Dimension [x]	15 mm
Size / Dimension [x]	0.59 in
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.59 in
Size / Dimension [z]	0.11 in
Size / Dimension [z]	2.8 mm
Supplier Device Package	144-LGA (15x15)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.38 V
Voltage - Output 1 [Max]	5 V
Voltage - Output 1 [Min]	0.8 V
Voltage - Output 2 [Max]	5 V
Voltage - Output 2 [Min]	0.8 V

LTM4614 Series

Dual 4A per Channel Low VINDC/DC μModule (Power Module) Regulator

Part	Number of Outputs	Supplier Device Package	Applications	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Mounting Type	Current - Output (Max)	Type	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices LTM4614EV#PBF	2	144-LGA (15x15)	ITE (Commercial)	5 V	0.8 V	Surface Mount	4 A	Non-Isolated PoL Module	144-BLGA Module	5.5 V	0.8 V	5 V	0.11 in	15 mm	15 mm	0.59 in	0.59 in	2.8 mm	95 %	2.38 V	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.47
		5	$ 29.67
		10	$ 28.93
		25	$ 27.97
		40	$ 27.49
		80	$ 26.80
		230	$ 25.79

Description

General part information

LTM4614 Series

The LTM4614 s a complete 4A dual output switching mode step-down µModule®regulator. Included in the package are the switching controllers, power FETs, inductors and all support components. The dual 4A DC/DC converters operate over an input voltage range of 2.375V to 5.5V. The LTM4614 supports output voltages ranging from 0.8V to 5V. The regulator output voltages are set by a single resistor for each output. Only bulk input and output capacitors are needed to complete the design.The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation.Additional features include overvoltage protection, foldback overcurrent protection, thermal shutdown and programmable soft-start. The power module is offered in a space saving and thermally enhanced 15mm × 15mm × 2.82mm LGA package. The LTM4614 is RoHS compliant with Pb-free finish.ApplicationsTelecom and Networking EquipmentFPGA PowerSERDES and Other Low Noise Applications
