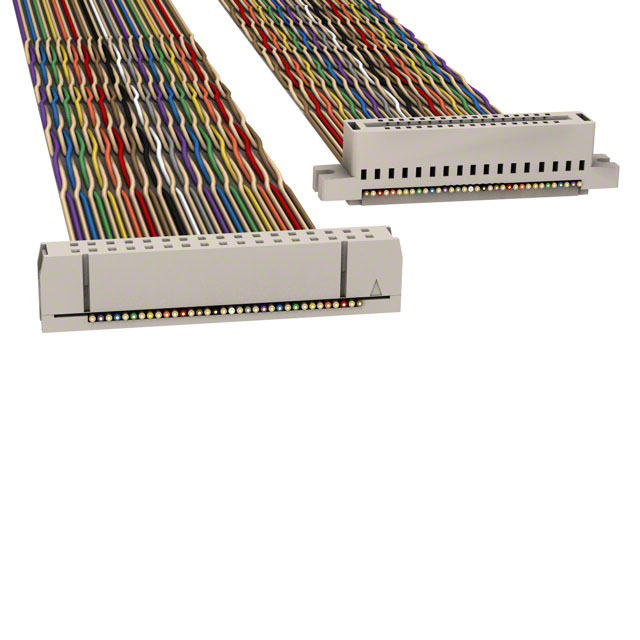

M3AGK-3440K

Unknown

3M (TC)

IDC CABLE - MSC34K/MC34F/MCS34K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1700 Series +1

M3AGK-3440K

Unknown

3M (TC)

IDC CABLE - MSC34K/MC34F/MCS34K

Deep-Dive with AI

DocumentsDatasheet 1700 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3AGK-3440K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3AGK Series

Part	Contact Finish	Shielding	Connector Type	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Rows	Features	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Number of Positions	Length
3M (TC) M3AGK-1036R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	10	0.1 in	2.54 mm	3 ft	914.4 mm	Multiple Ribbon	0.76 Ám	30 Áin
3M (TC) M3AGK-1606J	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm				0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	16
3M (TC) M3AGK-3436R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm	3 ft	914.4 mm	Multiple Ribbon	0.76 Ám	30 Áin
3M (TC) M3AGK-5040K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	50	0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin
3M (TC) M3AGK-1640K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin				16
3M (TC) M3AGK-3440K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin
3M (TC) M3AGK-1020K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	10	0.1 in	2.54 mm			Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	508 mm				1.67 ft
3M (TC) M3AGK-3406R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm			Multiple Ribbon	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '
3M (TC) M3AGK-1618R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm	1.5 ft	457.2 mm	Multiple Ribbon	0.76 Ám	30 Áin				16
3M (TC) M3AGK-4018J	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	40	0.1 in	2.54 mm	1.5 ft	457.2 mm		0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.57

Description

General part information

M3AGK Series

34 Position Cable Assembly Rectangular Socket to Card Edge 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

1700 Series

Datasheet

3yyy-0002 Card-Edge
