11121

Active

SparkFun Electronics

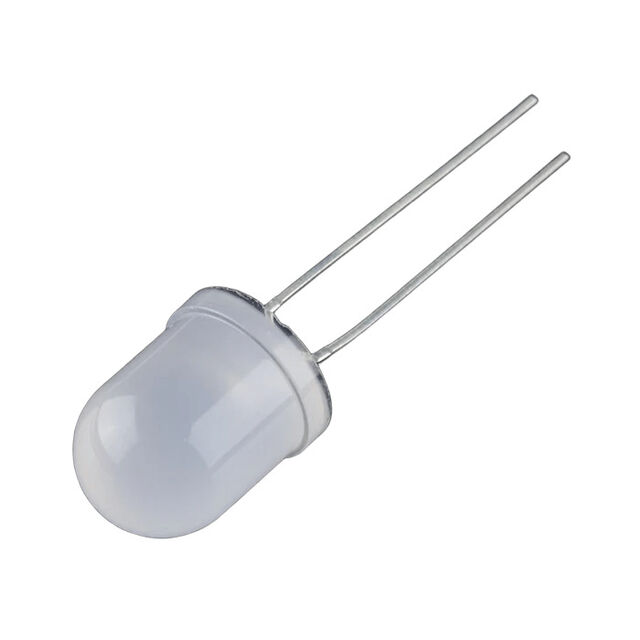

LED WHITE DIFFUSED T/H

Search across all available documentation for this part.

Active

SparkFun Electronics

LED WHITE DIFFUSED T/H

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Lens Size	Viewing Angle [custom]	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Color	Millicandela Rating	Lens Transparency	Lens Style	Size / Dimension [diameter]	Package / Case	Features	Lens Color	Viewing Angle	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Termination Style
SparkFun Electronics COM-11840
SparkFun Electronics 11121	T-3 1/8	10 mm	40 °	Through Hole	20 mA	3.2 V	11.7 mm	White	165 mcd	Diffused	Round with Domed Top	11.2 mm	Radial
SparkFun Electronics COM-11372	T-1 3/4	5 mm		Through Hole		3.4 V		Blue			Round with Domed Top		Radial	Flashing	Blue
SparkFun Electronics COM-11121	T-3 1/8	10 mm	40 °	Through Hole	20 mA	3.2 V	11.7 mm	White	165 mcd	Diffused	Round with Domed Top	11.2 mm	Radial
SparkFun Electronics COM-11118	T-3 1/8	10 mm		Through Hole	80 mA	3.2 V	13.85 mm	White	18000 mcd		Round with Domed Top	10.8 mm	Radial			30 °
SparkFun Electronics COM-11155				Panel Mount Snap-In													On-Off	Round - Illuminated	5 VDC	Blue LED	20.2 mm	Dot	12 V	SPST	16 A	Black	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White LED Indication - Discrete 3.2V Radial

Technical documentation and resources

No documents available
