11300160520

Active

HARTING Technology Group

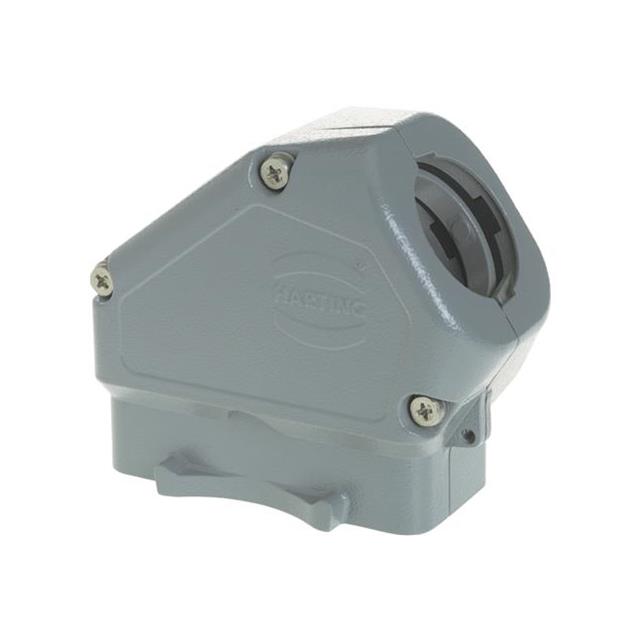

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 16B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 2 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	11300160520

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP54 - Dust Protected, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	112.1 mm
Size / Dimension [x]	4.413 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	3.917 in
Size / Dimension [z]	99.5 mm
Style	Side Entry

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size	Housing Finish	Housing Material	Ingress Protection	Housing Color
HARTING Technology Group 11300160520	112.1 mm	1.693 in	3.917 in	43 mm	99.5 mm	4.413 in	Side Entry	125 °C	-40 °C	Hood	16 B	Powder Coated	Aluminum Die Cast	IP54 - Dust Protected Water Resistant	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry 16B IP54 - Dust Protected, Water Resistant
