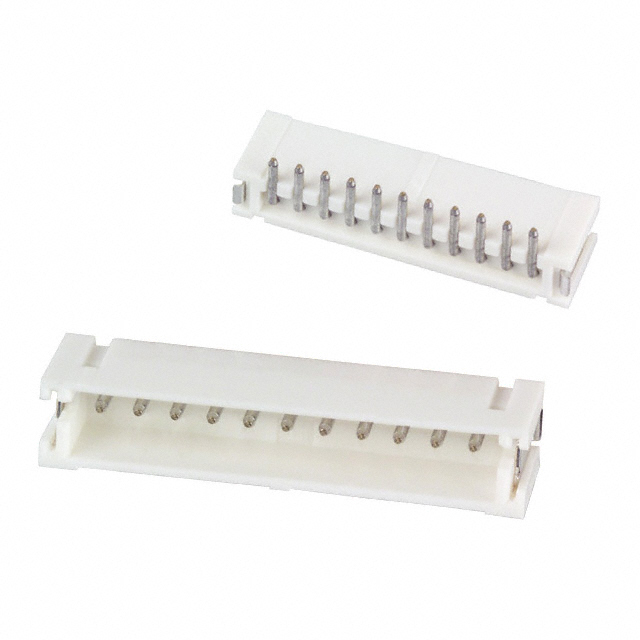

B11B-ZR-SM4-TF

Active

JST Sales America Inc.

CONN HEADER SMD 11POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 11POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B11B-ZR-SM4-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA6T), Glass Filled, Nylon 6T
Mated Stacking Heights	6.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Style	Number of Positions Loaded	Number of Rows	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Mated Stacking Heights	Material Flammability Rating	Contact Finish - Post	Contact Shape	Insulation Color	Insulation Material	Fastening Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Shrouding	Termination	Number of Positions	Insulation Height	Insulation Height	Contact Material	Overall Contact Length	Overall Contact Length	Features
JST Sales America Inc. B11B-ZR-3.4	Board to Cable/Wire	All	1	2.4 mm	0.094 in	-25 °C	85 °C	Male Pin	Through Hole	5.6 mm	UL94 V-0	Tin	Circular	Natural	Polyamide (PA66) Nylon 6/6 Glass Filled	Detent Lock	50 V	0.134 in	3.4 mm	Header	Shrouded - 4 Wall	Solder	11	0.177 in	4.5 mm	Brass
JST Sales America Inc. B11B-ZR	Board to Cable/Wire	All	1	2.4 mm	0.094 in	-25 °C	85 °C	Male Pin	Through Hole	5.6 mm	UL94 V-0	Tin	Circular	Natural	Polyamide (PA66) Nylon 6/6 Glass Filled	Detent Lock	50 V	0.106 in	2.69 mm	Header	Shrouded - 4 Wall	Solder	11	0.177 in	4.5 mm	Brass	0.256 in	6.5 mm
JST Sales America Inc. B11B-ZR-SM4-TF	Board to Cable/Wire	All	1			-25 °C	85 °C	Male Pin	Surface Mount	6.4 mm	UL94 V-0	Tin	Circular	Natural	Glass Filled Nylon 6T Polyamide (PA6T)	Detent Lock	50 V			Header	Shrouded - 4 Wall	Solder	11	0.197 in	5 mm	Brass			Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.03
	Digi-Reel®	1	$ 1.03
	Tape & Reel (TR)	1000	$ 0.60

General part information

Connector Header Surface Mount 11 position 0.059" (1.50mm)
