430549-507

Laird Thermal Systems, Inc.

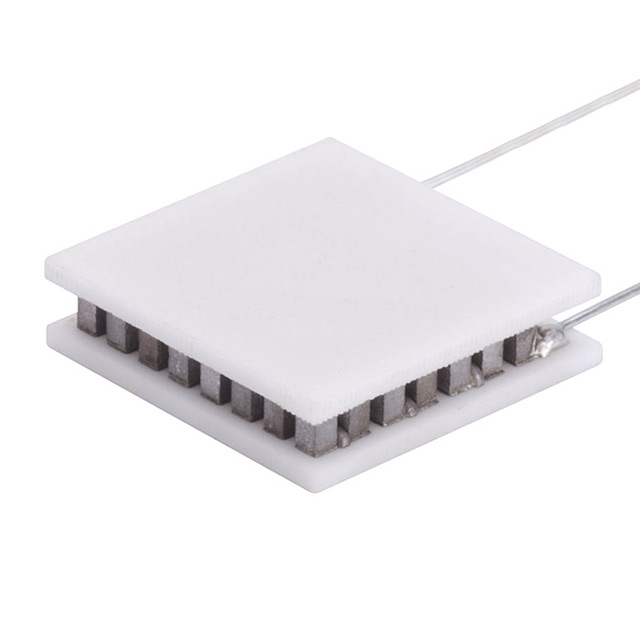

PELTIR ET20,31,F1A,0909,GG,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIR ET20,31,F1A,0909,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Features	Number of Stages	Current - Max [Max]	Delta Tmax @ Th	Height [z]	Qmax @ Th	Voltage - Max [Max]	Operating Temperature
Laird Thermal Systems, Inc. 430549-507	8.79 mm	8.79 mm	Lead Wires Non-Sealed	1	2 A	67 °C	2.49 mm	4.2 W	3.5 V	80 °C
Laird Thermal Systems, Inc. 430549-501	8.79 mm	8.79 mm	Lead Wires Non-Sealed	1	2 A	67 °C	2.18 mm	4.2 W	3.5 V	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.2W @ 25°C 2 A 80°C

Technical documentation and resources
