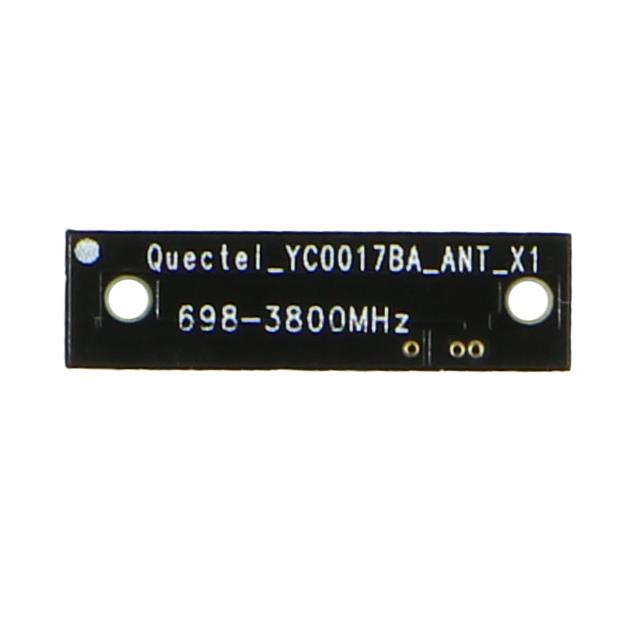

YC0017BA
ActiveQuectel
EMBEDDED CELLULAR ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YC0017BA
ActiveQuectel
EMBEDDED CELLULAR ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YC0017BA |
|---|---|
| Antenna Type | Chip |
| Applications | LTE |
| Frequency (Center/Band) | 3.6 GHz, 830 MHz, 2.205 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 3.8 GHz, 2.7 GHz |
| Frequency Range [Min] | 700 MHz, 3.4 GHz, 1.71 GHz |
| Gain | 4 dBi |
| Height (Max) | 3 mm |
| Height (Max) [Max] [z] | 0.118 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.90 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.66 | |||
| Digi-Reel® | 1 | $ 1.90 | ||
| 10 | $ 1.21 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.66 | |||
| Tape & Reel (TR) | 1500 | $ 0.58 | ||
| 3000 | $ 0.54 | |||
| 4500 | $ 0.53 | |||
| 7500 | $ 0.50 | |||
| 10500 | $ 0.49 | |||
| 15000 | $ 0.48 | |||
Description
General part information
YC0017BA Series
RF ANTENNA LTE Chip Solder Surface Mount
