Q-6805G0003084I

Active

Amphenol Custom Cable

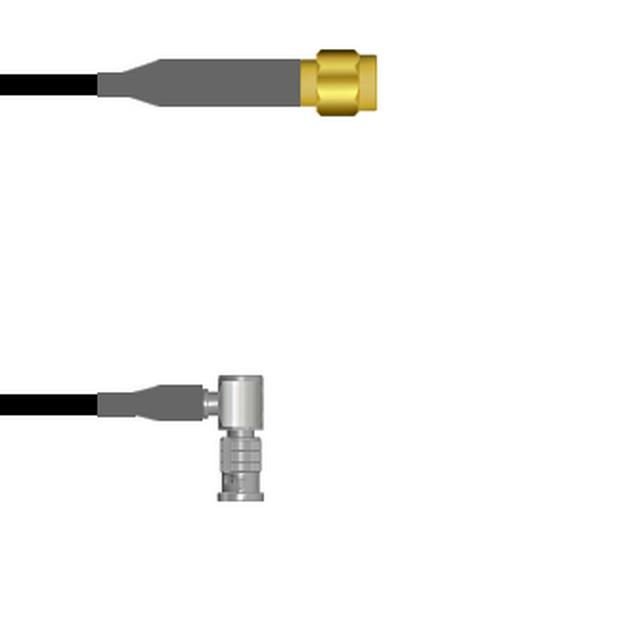

CBL ASSY RPSMA-HDBNC PLUG-PLG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-6805G0003084I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-HDBNC PLUG-PLG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6805G0003084I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	RP-SMA to HD-BNC

Q-6805G0 Series

Part	2nd Connector	Style	Color	2nd Contact Gender	Features	2nd Connector Mounting Type	Cable Type	Length	Length	Connector Impedance	Cable Impedance	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	1st Connector	Frequency - Max [Max]	Length
Amphenol Custom Cable Q-6805G0003.75M	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	29.53 "	750 mm	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz
Amphenol Custom Cable Q-6805G0005002M	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Copper	Male	Shielded	Free Hanging (In-Line)	RG-316	78.7 in	2 m	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	3 GHz	6.6 ft
Amphenol Custom Cable Q-6805G0003048I	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	48 in	1200 mm	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz	4 ft
Amphenol Custom Cable Q-6805G0003084I	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	84 in	2.1 m	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz	7 ft
Amphenol Custom Cable Q-6805G0003003I	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	3 in	76.2 mm	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz
Amphenol Custom Cable Q-6805G0005024I	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Copper	Male	Shielded	Free Hanging (In-Line)	RG-316	24 "	609.6 mm	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	3 GHz
Amphenol Custom Cable Q-6805G00031.5M	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	59.1 in	1.5 m	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz	4.9 ft
Amphenol Custom Cable Q-6805G0005.75M	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Copper	Male	Shielded	Free Hanging (In-Line)	RG-316	29.53 "	750 mm	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	3 GHz
Amphenol Custom Cable Q-6805G0003002M	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	78.7 in	2 m	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz	6.6 ft
Amphenol Custom Cable Q-6805G0003060I	HD-BNC Plug Right Angle	RP-SMA to HD-BNC	Black	Male	Shielded	Free Hanging (In-Line)	RG-174	5 '	1.5 m	50 Ohms	50 Ohms	50 Ohms	Free Hanging (In-Line)	Female	RP-SMA Plug	1 GHz	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.12
		25	$ 77.48
		50	$ 71.85
		100	$ 67.02
		250	$ 62.99

Description

General part information

Q-6805G0 Series

Cable Assembly Coaxial RP-SMA to HD-BNC RG-174 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
