CMF2.1031.12

Obsolete

SCHURTER Inc.

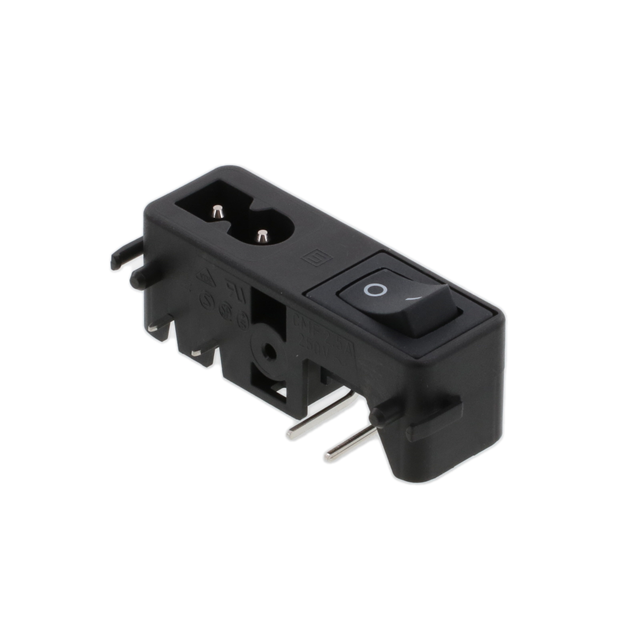

PWR ENT MOD RCPT IEC320-C8 PANEL

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C8 PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	CMF2.1031.12

Accomodates a Fuse	False
Approval Agency	cULus, CCC, VDE
Connector Style	IEC 320-C8
Connector Type	Receptacle, Male Pins - Module
Current Rating - Appliance Inlet	2.5 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Number of Positions	2
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Approval Agency	Connector Type	Material Flammability Rating	Ingress Protection	Number of Positions	Connector Style	Accomodates a Fuse	Current Rating - Appliance Inlet	Mounting Type	Voltage Rating - Appliance Inlet	Switch Features	Termination	Panel Thickness	Panel Thickness
SCHURTER Inc. CMF2.1031.12	Unfiltered - Commercial	CCC cULus VDE	Receptacle Male Pins - Module	UL94 V-0	IP40	2	IEC 320-C8		2.5 A	Panel Mount Snap-In Through Hole Right Angle	250 VAC	Switch On-Off	Solder	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins - Module IEC 320-C8 Panel Mount, Snap-In; Through Hole, Right Angle
