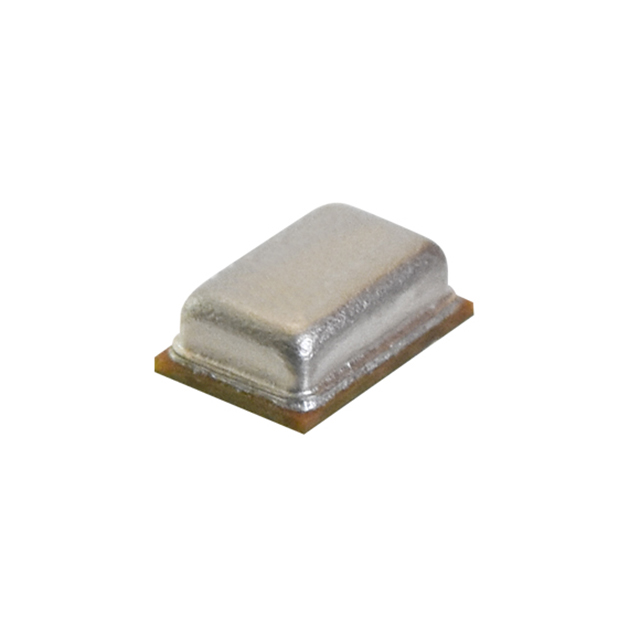

CMM-2718AB-383161-TR
ActiveCUI Devices
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
Search across all available documentation for this part.
CMM-2718AB-383161-TR
ActiveCUI Devices
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMM-2718AB-383161-TR |
|---|---|
| Current - Supply | 160 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) | 0.95 mm |
| Height (Max) [Max] | 0.037 in |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 61 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 2.75 mm |
| Size / Dimension [x] | 0.108 " |
| Size / Dimension [y] | 0.073 " |
| Size / Dimension [y] | 1.85 mm |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.58 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| Tape & Reel (TR) | 1000 | $ 0.28 | ||
| 5000 | $ 0.28 | |||
Description
General part information
CMM-2718 Series
100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-38dB ±3dB @ 94dB SPL) Solder Pads
Documents
Technical documentation and resources
No documents available
