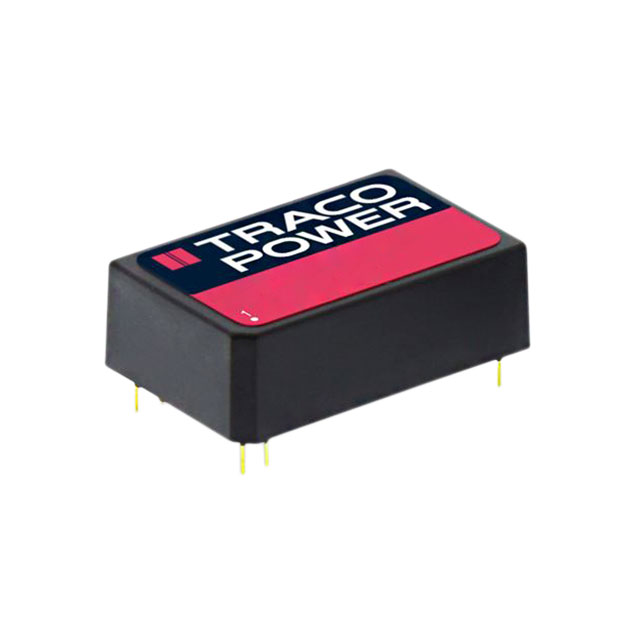

THI 2412
ActiveTraco Power
DC DC CONVERTER 12V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THI 2412 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 165 mA |
| Efficiency | 63 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 6 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 2500 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 32.85 | |
Description
General part information
THI 24 Series
Isolated Module DC DC Converter 1 Output 12V 165mA 21.6V - 26.4V Input
