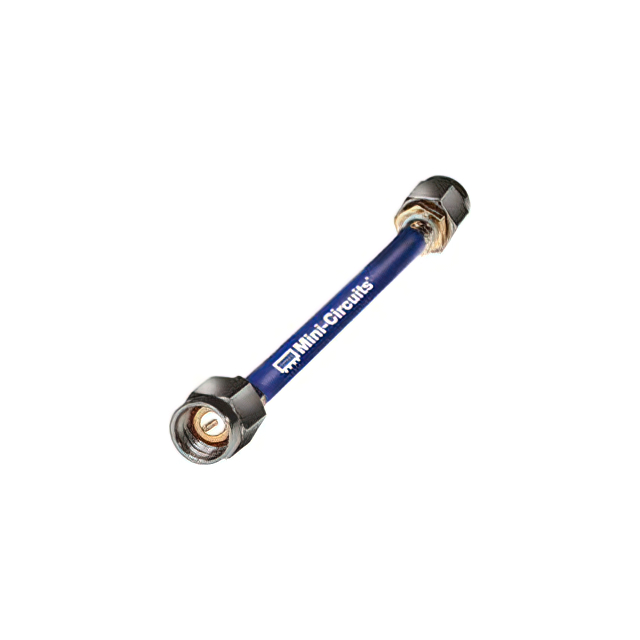

141-20SM+
ActiveMINI-CIRCUITS
CBL ASSY SMA PLUG TO PLUG 20"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
141-20SM+
ActiveMINI-CIRCUITS
CBL ASSY SMA PLUG TO PLUG 20"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 141-20SM+ |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable .141 |
| Color | Blue |
| Frequency - Max [Max] | 18 GHz |
| Length [x] | 508 mm |
| Length [x] | 20 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.96 | |
| 10 | $ 21.79 | |||
| 25 | $ 21.64 | |||
| 50 | $ 21.34 | |||
Description
General part information
141-20 Series
Cable Assembly Coaxial SMA to SMA Hand Formable .141 20.00" (508.00mm)
