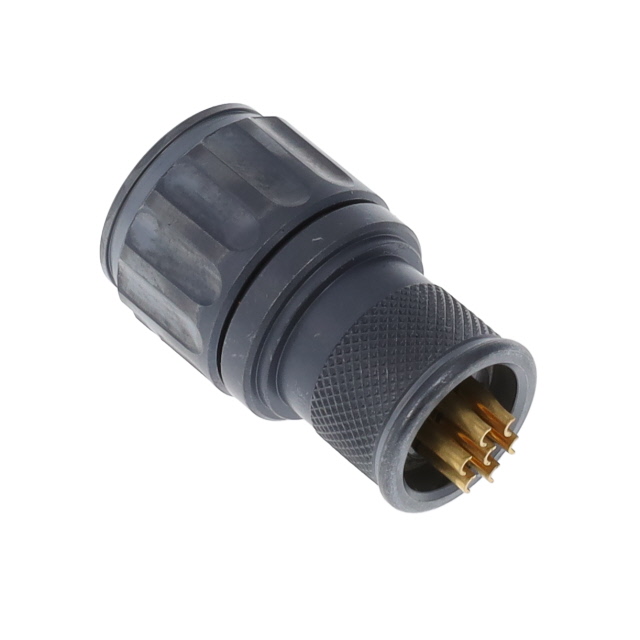

SCE2-B-L1K06-07PN

Active

Amphenol

CONN RCPT MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SCE2-B-L1K06-07PN

Active

Amphenol

CONN RCPT MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SCE2-B-L1K06-07PN

Backshell Material, Plating	Brass, Black Silver
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A, 1.5 A, 7.5 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black
Shell Material	Brass
Shell Size - Insert [Max]	7
Shell Size - Insert [Min]	6
Shielding	Unshielded
Voltage Rating	400 VAC

SCE2-B Series

Part	Ingress Protection	Connector Type	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Fastening Type	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Number of Positions	Contact Material	Orientation	Shielding	Voltage Rating	Shell Finish	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Backshell Material, Plating	Features	Shell Size - Insert
Amphenol SCE2-B-76A07-14SN-002	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal	7	14	Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	14	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C
Amphenol SCE2-B-76A09-26SN-001	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal	9	26	Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	26	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Panel Mount Through Hole	Solder
Amphenol SCE2-B-L1K06-07PN	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Metal	6	7	Push-Pull	Gold		1.5 A 3 A 7.5 A	7	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Free Hanging (In-Line)		Black Silver Brass	Backshell Coupling Nut
Amphenol SCE2-B-L1K10-37PN	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Metal			Push-Pull	Gold		1.5 A 3 A 7.5 A	37	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Free Hanging (In-Line)		Black Silver Brass	Backshell Coupling Nut	10-37
Amphenol SCE2-B-01K06-07PN	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Metal	6	7	Push-Pull	Gold		1.5 A 3 A 7.5 A	7	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Free Hanging (In-Line)		Black Silver Brass	Backshell
Amphenol SCE2-B-76A10-37SN-001	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal			Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	37	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Panel Mount Through Hole	Solder			10-37
Amphenol SCE2-B-76A07-10ASN-002	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal			Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	10	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C					7-A10
Amphenol SCE2-B-76A08-19SN-002	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal	8	19	Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	19	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C
Amphenol SCE2-B-L1K07-12PN	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Metal	7	12	Push-Pull	Gold		1.5 A 3 A 7.5 A	12	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Free Hanging (In-Line)		Black Silver Brass	Backshell Coupling Nut
Amphenol SCE2-B-76A08-19SN-001	IP68 - Dust Tight Waterproof	Female Sockets Plug	Metal	8	19	Push-Pull	Gold	Bulkhead - Front Side Nut	1.5 A 3 A 7.5 A	19	Copper Alloy	N	Unshielded	400 VAC	Black	Black	1 µm	39.4 µin	Brass	-55 °C	125 °C	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.05
		10	$ 95.48
		25	$ 91.81
		50	$ 88.75
		100	$ 83.85

Description

General part information

SCE2-B Series

7 Position Circular Connector Receptacle, Male Pins Solder Cup
