Q-0404200051.5M

Active

Amphenol Custom Cable

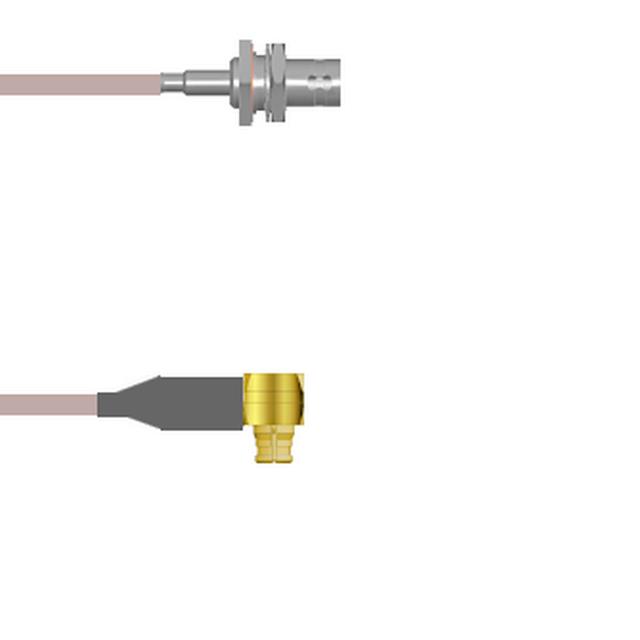

CBL ASSY BNC-SMP JACK-PLUG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0404200051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP JACK-PLUG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0404200051.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-040420 Series

Part	Length	Length	Style	1st Connector Mounting Type	Color	2nd Connector Mounting Type	1st Contact Gender	Features	Frequency - Max [Max]	1st Connector	2nd Connector	1st Connector Mounting Feature	Cable Type	Overall Impedance	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-040420003003i	3 in	76.2 mm	BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male
Amphenol Custom Cable Q-040420003108i	108 in	2.7 m	BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male	9 ft
Amphenol Custom Cable Q-040420003.25M			BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male		9.843 "	250 mm
Amphenol Custom Cable Q-0404200050.5M	19.69 "	50 cm	BNC to SMP	Panel Mount	Copper	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-316	50 Ohms	Male
Amphenol Custom Cable Q-040420003001M	39.4 in	1 m	BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male	3.3 ft
Amphenol Custom Cable Q-0404200052.5M	98.4 in	2.5 m	BNC to SMP	Panel Mount	Copper	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-316	50 Ohms	Male	8.2 '
Amphenol Custom Cable Q-040420005003i	3 in	76.2 mm	BNC to SMP	Panel Mount	Copper	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-316	50 Ohms	Male
Amphenol Custom Cable Q-0404200051.5M	59.1 in	1.5 m	BNC to SMP	Panel Mount	Copper	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-316	50 Ohms	Male	4.9 ft
Amphenol Custom Cable Q-040420003060i	5 '	1.5 m	BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male	5 ft
Amphenol Custom Cable Q-040420003003M	118.1 in	3 m	BNC to SMP	Panel Mount	Black	Free Hanging (In-Line)	Female	Shielded	4 GHz	BNC Jack	SMP Plug Right Angle	Bulkhead - Front Side Nut	RG-174	50 Ohms	Male	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.59
		25	$ 82.48
		50	$ 76.38
		100	$ 71.14
		250	$ 66.78

Description

General part information

Q-040420 Series

Cable Assembly Coaxial BNC to SMP RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
