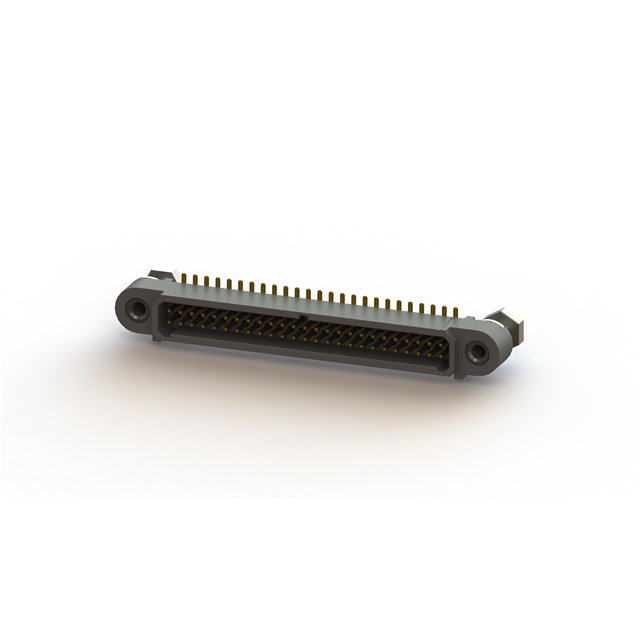

A221T50V22

Active

Nicomatic

MALE 50POS STRAIGHT SMT 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 50POS STRAIGHT SMT 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221T50V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Number of Rows	Connector Type	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Features	Insulation Material	Voltage Rating	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Termination	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
Nicomatic A221T50V22	0.15 µm	5.9 µin	0.157 in	4 mm	Gold	All	Male Pin	2.5 A	2	Header	Surface Mount	0.039 "	1 mm	Board to Board Cable	Mating Flange Mounting Flange Mounting Hardware	Liquid Crystal Polymer (LCP)	600 VAC	Gold	50	0.039 in	1 mm	Circular	Black	Solder	Shrouded - 4 Wall	0.15 µm	5.9 µin	UL94 V-0	-65 ░C	200 °C	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 50 position 0.039" (1.00mm)
