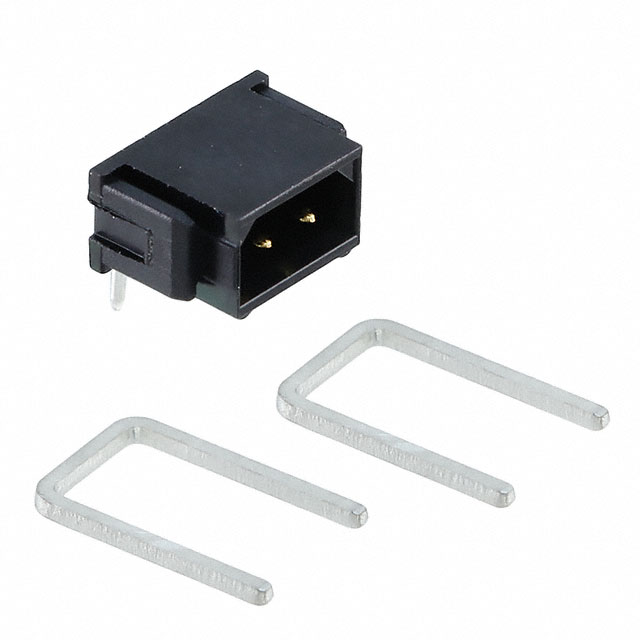

M80-8780222

Active

Harwin Inc.

HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M80-8780222

Active

Harwin Inc.

HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8780222

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	0.156 in
Insulation Height	3.96 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-878 Series

Part	Current Rating (Amps)	Number of Positions Loaded	Style	Contact Length - Post	Contact Length - Post	Insulation Material	Fastening Type	Connector Type	Insulation Color	Contact Finish - Post	Contact Type	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Shrouding	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows
Harwin Inc. M80-8780422	2.2 A	All	Board to Board Cable	0.118 in	3 mm	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	Header	Black	Tin-Lead	Male Pin	120 VDC	Gold	UL94 V-0	-55 °C	125 °C	0.156 in	3.96 mm	Through Hole Right Angle	Circular	Shrouded - 4 Wall	Solder	Phosphor Bronze	29.5 Áin	0.75 Ám	4	3 µm	118.1 µin	Strain Relief Clips	0.079 in	2 mm	1
Harwin Inc. M80-8780222	2.2 A	All	Board to Board Cable	0.118 in	3 mm	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	Header	Black	Tin-Lead	Male Pin	120 VDC	Gold	UL94 V-0	-55 °C	125 °C	0.156 in	3.96 mm	Through Hole Right Angle	Circular	Shrouded - 4 Wall	Solder	Phosphor Bronze	29.5 Áin	0.75 Ám	2	3 µm	118.1 µin	Strain Relief Clips	0.079 in	2 mm	1
Harwin Inc. M80-8782222	2.2 A	All	Board to Board Cable	0.118 in	3 mm	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	Header	Black	Tin-Lead	Male Pin	120 VDC	Gold	UL94 V-0	-55 °C	125 °C	0.156 in	3.96 mm	Through Hole Right Angle	Circular	Shrouded - 4 Wall	Solder	Phosphor Bronze	29.5 Áin	0.75 Ám	22 positions	3 µm	118.1 µin	Strain Relief Clips	0.079 in	2 mm	1
Harwin Inc. M80-8781722	2.2 A	All	Board to Board Cable	0.118 in	3 mm	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	Header	Black	Tin-Lead	Male Pin	120 VDC	Gold	UL94 V-0	-55 °C	125 °C	0.156 in	3.96 mm	Through Hole Right Angle	Circular	Shrouded - 4 Wall	Solder	Phosphor Bronze	29.5 Áin	0.75 Ám		3 µm	118.1 µin	Strain Relief Clips	0.079 in	2 mm	1
Harwin Inc. M80-8780722	2.2 A	All	Board to Board Cable	0.118 in	3 mm	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	Header	Black	Tin-Lead	Male Pin	120 VDC	Gold	UL94 V-0	-55 °C	125 °C	0.156 in	3.96 mm	Through Hole Right Angle	Circular	Shrouded - 4 Wall	Solder	Phosphor Bronze	29.5 Áin	0.75 Ám	7	3 µm	118.1 µin	Strain Relief Clips	0.079 in	2 mm	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.37
		32	$ 1.97
		128	$ 1.84
		512	$ 1.53
		1024	$ 1.32
		5024	$ 1.17
Newark	Each	1000	$ 1.47
		2500	$ 1.33

Description

General part information

M80-878 Series

Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
