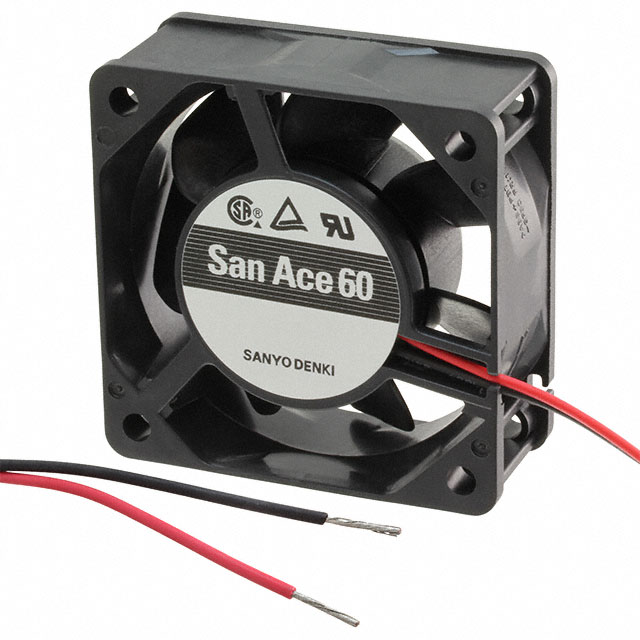

9WP0612H402

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing

9WP0612H402

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WP0612H402

Air Flow	18.7 CFM
Air Flow	0.524 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.32 W
RPM	3800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.243 lb
Weight	110.22 g
Width [y]	25 mm

9WP0612 Series

Part	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Approval Agency	Termination	Fan Type	Voltage - Rated	Air Flow	Air Flow	Width [y]	Weight	Weight	Power (Watts)	Current Rating (Amps)	Material - Blade	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	RPM	Static Pressure	Static Pressure	Operating Temperature [Max]	Features	Lifetime @ Temp.
Sanyo Denki America Inc. 9WP0612H402	28 dB	70 °C	70 °C	-10 °C	-10 °C	Ball	CSA TUV UL	2 Wire Leads	Tubeaxial	12 VDC	18.7 CFM	0.524 mł/min	25 mm	0.243 lb	110.22 g	1.32 W	110 mA	Plastic	IP55 - Dust Protected Water Resistant	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	3800 RPM
Sanyo Denki America Inc. 9WP0612D4011	37 dB		70 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	25 CFM	0.7 mł/min	25 mm	0.243 lb	110.22 g	2.52 W	0.21 A	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	5150 RPM	74.7 Pa	0.3 in H2O	70 °C	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0612H4D01	28 dB		70 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	18.7 CFM	0.524 mł/min	25 mm	0.243 lb	110.22 g	1.32 W	110 mA	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	3800 RPM			70 °C	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP0612G402	39 dB(A)		60 °C	-20 °C	-20 C	Ball	CSA TUV UL	2 Wire Leads	Tubeaxial	12 VDC	27.5 CFM	0.77 m³/min	25 mm	0.243 lb	110.22 g	2.52 W	0.21 A	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.2 VDC	5600 RPM	87.3 Pa	0.351 in H2O	60 °C		40000 Hrs
Sanyo Denki America Inc. 9WP0612D4D011	37 dB		70 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	25 CFM	0.7 mł/min	25 mm	0.243 lb	110.22 g	2.52 W	0.21 A	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	5150 RPM	74.7 Pa	0.3 in H2O	70 °C	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP0612H401	28 dB		70 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	18.7 CFM	0.524 mł/min	25 mm	0.243 lb	110.22 g	1.32 W	110 mA	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	3800 RPM			70 °C	Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 9WP0612H4D011	28 dB		70 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	18.7 CFM	0.524 mł/min	25 mm	0.243 lb	110.22 g	1.32 W	110 mA	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.8 VDC	3800 RPM			70 °C	Locked Rotor Sensor
Sanyo Denki America Inc. 9WP0612G4011	39 dB(A)		60 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	27.5 CFM	0.77 m³/min	25 mm	0.243 lb	110.22 g	2.52 W	0.21 A	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.2 VDC	5600 RPM	87.3 Pa	0.351 in H2O	60 °C	Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 9WP0612G4D01	39 dB(A)		60 °C	-20 °C	-20 C	Ball	CSA TUV UL	3 Wire Leads	Tubeaxial	12 VDC	27.5 CFM	0.77 m³/min	25 mm	0.243 lb	110.22 g	2.52 W	0.21 A	Plastic	IP68 - Dust Tight Waterproof	60 mm	60 mm	Plastic	10.2 VDC	13.2 VDC	5600 RPM	87.3 Pa	0.351 in H2O	60 °C	Locked Rotor Sensor	40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9WP0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 18.7 CFM (0.524m³/min) 2 Wire Leads
