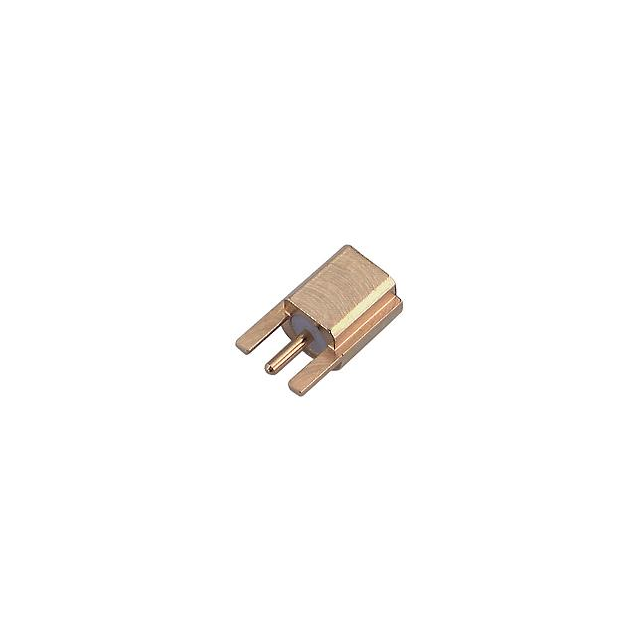

82_MMCX-S50-0-2/111_KG

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

82_MMCX-S50-0-2/111_KG

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82_MMCX-S50-0-2/111_KG

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

82_MMCX Series

Part	Connector Style	Connector Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Voltage Rating	Body Finish	Fastening Type	Dielectric Material	Center Contact Plating	Impedance	Mounting Type	Shield Termination	Center Contact Material	Body Material	Number of Ports	Frequency - Max [Max]	Mating Cycles
Huber+Suhner, Inc. 82_MMCX-50-0-1/111_NH	MMCX	Female Socket Jack	Gold	155 °C	-55 °C	Solder	170 V	Gold	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Through Hole	Solder	Beryllium Copper	Brass	1	6000 MHz	500
Huber+Suhner, Inc. 84021645	MMCX	Female Socket Jack	Gold	90 °C	-40 °C	Solder	170 V	Gold	Snap-On		Gold	50 Ohms	Surface Mount	Solder	Bronze	Liquid Crystal Polymer (LCP)	1	6000 MHz	500
Huber+Suhner, Inc. 82_MMCX-S50-0-2/111_KG	MMCX	Female Socket Jack	Gold	155 °C	-55 °C	Solder	170 V	Gold	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Board Edge Cutout Surface Mount	Solder	Beryllium Copper	Brass	1	6000 MHz	500
Huber+Suhner, Inc. 82_MMCX-S50-0-2/111_KH	MMCX	Female Socket Jack	Gold	155 °C	-55 °C	Solder	170 V	Gold	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Board Edge Cutout Through Hole	Solder	Beryllium Copper	Brass	1	6000 MHz	500
Huber+Suhner, Inc. 82_MMCX-50-0-8/111_OM	MMCX	Female Socket Jack	Gold	155 °C	-55 °C	Solder	170 V	Gold	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Surface Mount	Solder	Beryllium Copper	Brass	1	6000 MHz	500
Huber+Suhner, Inc. 82_MMCX-S50-0-2/111_KE	MMCX	Female Socket Jack	Gold	155 °C	-55 °C	Solder	170 V	Gold	Snap-On	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Board Edge Cutout Surface Mount	Solder	Beryllium Copper	Brass	1	6000 MHz	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.69
		10	$ 6.05
		25	$ 5.71
		50	$ 5.58
		100	$ 5.30
		250	$ 4.74
	Tape & Reel (TR)	750	$ 4.18
		1500	$ 3.82
Newark	Each (Supplied on Cut Tape)	1	$ 7.32
		100	$ 6.18
		250	$ 5.74
		500	$ 5.41
		1000	$ 5.16

Description

General part information

82_MMCX Series

MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
