1623849-7
ObsoleteTE Connectivity Passive Product

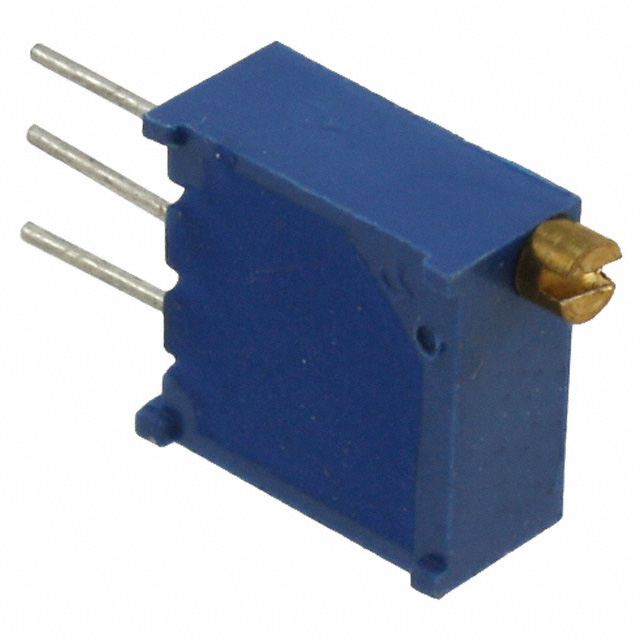

TRIMMER 1K OHM 0.5W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1623849-7
ObsoleteTE Connectivity Passive Product
TRIMMER 1K OHM 0.5W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1623849-7 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 25 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 1000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [x] | 0.374 in |
| Size / Dimension [y] | 4.7 mm |
| Size / Dimension [y] | 0.185 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1623849 Series
1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
