Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-NFC08A1 |
|---|---|
| Contents | Board(s) |
| Function | Near Field Communication (NFC) |
| Platform | Nucleo |
| Type | RF |
| Utilized IC / Part | ST25R3916B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-NFC08A1 Series

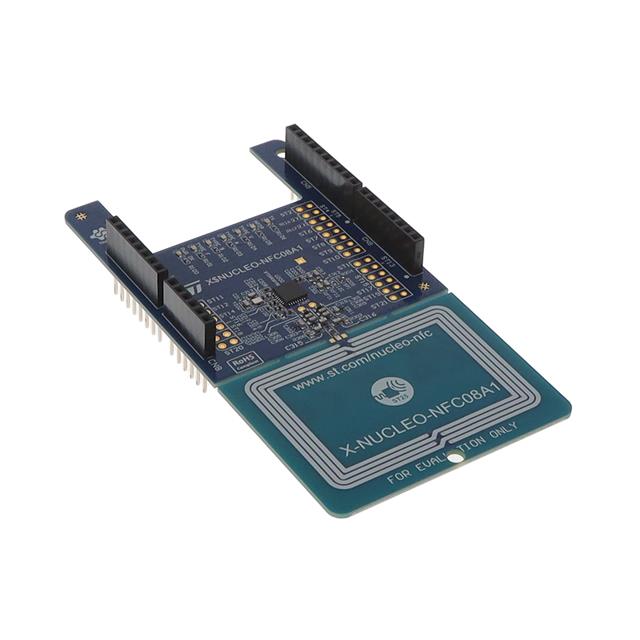

The X-NUCLEO-NFC08A1 NFC card reader expansion board is based on the ST25R3916B device.
The expansion board is configured to support ISO14443A/B, ISO15693, FeliCa™, and AP2P communication.
The ST25R3916B manages frame coding and decoding in reader mode for standard applications, such as NFC, proximity, and vicinity HF RFID standards. It supports ISO/IEC 14443 type A and B, ISO/IEC 15693 (single subcarrier only) and ISO/IEC 18092 communication protocols as well as the detection, reading and writing of NFC forum type 1, 2, 3, 4, and 5 tags.
