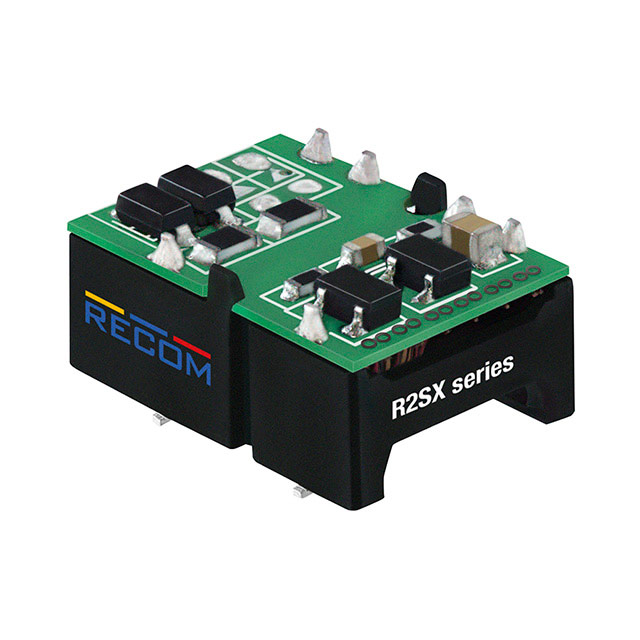

R2SX-053.3-TRAY

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 2W 05VIN 3.3VOUT 606MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R2SX-053.3-TRAY

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 2W 05VIN 3.3VOUT 606MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R2SX-053.3-TRAY

Applications	ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max) [Max]	606 mA
Efficiency	79 %
Features	OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Power (Watts)	2 W
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 "
Size / Dimension [y]	0.42 "
Size / Dimension [y]	10.7 mm
Size / Dimension [z]	0.31 in
Size / Dimension [z]	8 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	3.3 V

R2SX-053.3 Series

Isolated DC/DC Converters - SMD 2W 12Vi 5Vo 400mA Unreg

Part	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Type	Package / Case	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Approval Agency	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Output 1
RECOM Power R2SX-053.3/H-R	Surface Mount	4.5 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	5.5 V	606 mA	79 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	3000 V	3.3 V
RECOM Power R2SX-2405/H-TRAY	Surface Mount	21.6 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	26.4 V	400 mA	85 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	3000 V	5 V
RECOM Power R2SX-053.3-TRAY	Surface Mount	4.5 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	5.5 V	606 mA	79 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	1000 V	3.3 V
RECOM Power R2SX-2424-R	Surface Mount	21.6 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	26.4 V	84 mA	86 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	1000 V	24 V
RECOM Power R2SX-2415/H-R	Surface Mount	21.6 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	26.4 V	133 mA	85 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	3000 V	15 V
RECOM Power R2SX-053.3-R	Surface Mount	4.5 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	5.5 V	606 mA	79 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	1000 V	3.3 V
RECOM Power R2SX-2424-TRAY	Surface Mount	21.6 V	1	ITE (Commercial)	Isolated Module	10-SMD Module 6 Leads	26.4 V	84 mA	86 %	CB cURus	OCP	15.2 mm	0.31 in	0.42 "	8 mm	10.7 mm	0.6 "	2 W	-40 °C	100 °C	1000 V	24 V
