Q-2C03M0005001M
ActiveAmphenol Custom Cable

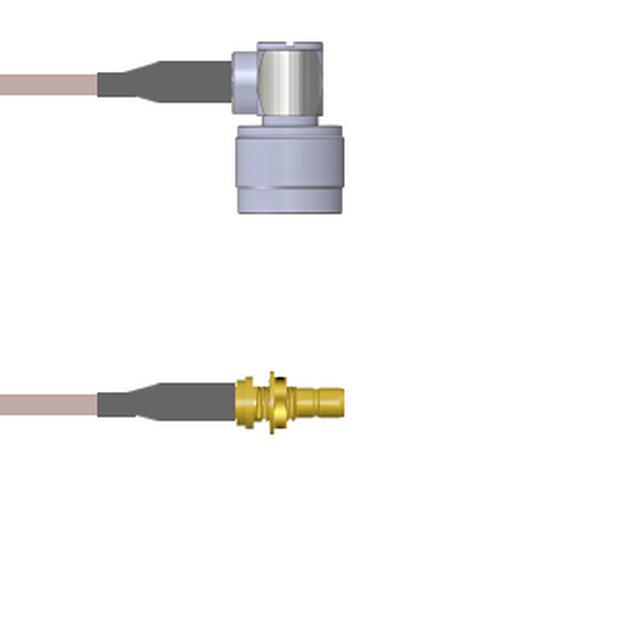

CBL ASSY SMB-NTYPE JACK-PLG 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C03M0005001M
ActiveAmphenol Custom Cable
CBL ASSY SMB-NTYPE JACK-PLG 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C03M0005001M |
|---|---|
| 1st Connector | SMB Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | SMB to N-Type |
Q-2C03M0 Series
| Part | Overall Impedance | Frequency - Max [Max] | 1st Connector Mounting Feature | Length | Length | 1st Connector | Style | Cable Type | 1st Connector Mounting Type | Features | 1st Contact Gender | 2nd Connector Mounting Type | 2nd Connector | 2nd Contact Gender | Color | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 29.53 " | 750 mm | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | |||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 3 in | 76.2 mm | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | |||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 39.4 in | 1 m | SMB Jack | SMB to N-Type | RG-316 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Copper | 3.3 ft | ||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 6 in | 152.4 mm | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | |||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 108 in | 2.7 m | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | 9 ft | ||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 84 in | 2.1 m | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | 7 ft | ||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 36 in | 91.44 cm | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | |||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 118.1 in | 3 m | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | 9.8 ' | ||
Amphenol Custom Cable | 50 Ohms | 4 GHz | Bulkhead - Front Side Nut | 39.4 in | 1 m | SMB Jack | SMB to N-Type | RG-174 | Panel Mount | Shielded | Male | Free Hanging (In-Line) | N-Type Plug Right Angle | Male | Black | 3.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 102.14 | |
| 25 | $ 100.16 | |||
| 50 | $ 98.17 | |||
| 100 | $ 96.19 | |||
| 250 | $ 94.20 | |||
Description
General part information
Q-2C03M0 Series
Cable Assembly Coaxial SMB to N-Type RG-316 39.4" (1.0m) 3.3'
